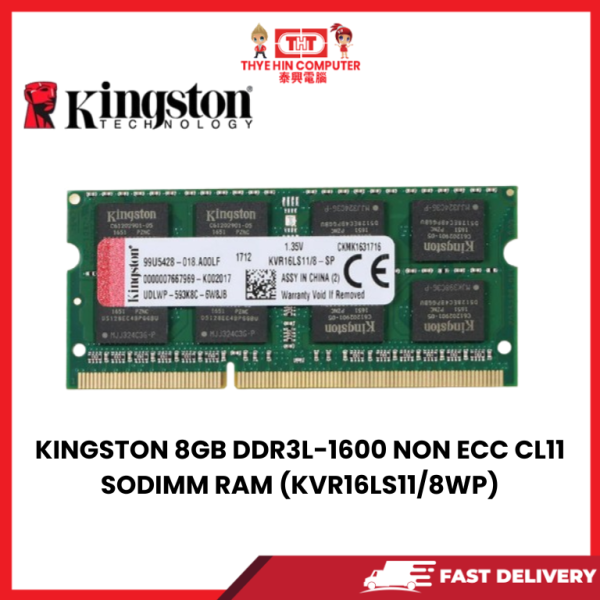

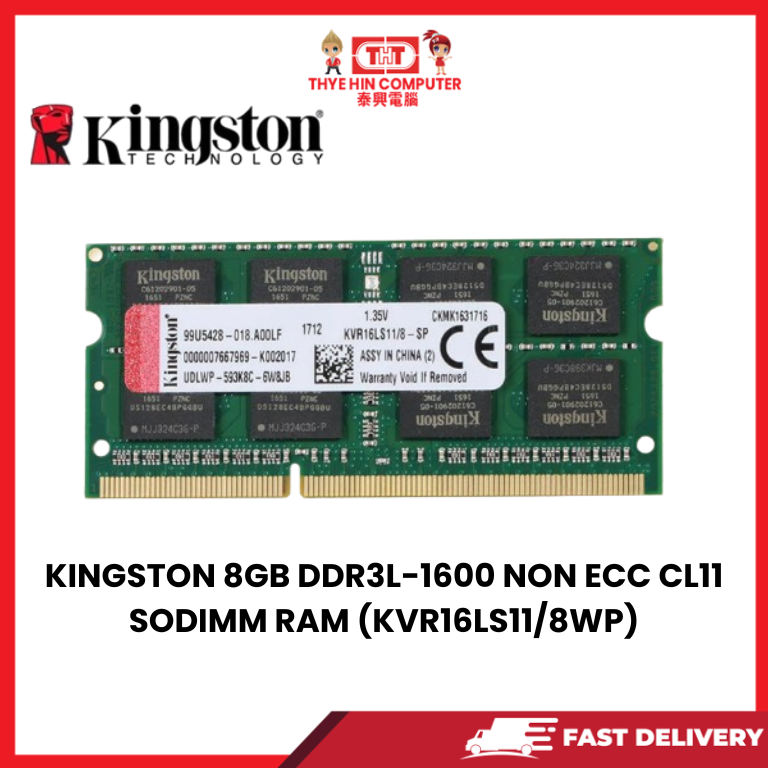

KINGSTON 8GB DDR3L-1600 NON ECC CL11 SODIMM RAM (KVR16LS11/8WP) [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Description

• Capacity: 8GB (1G x 64-bit)

• Type: DDR3L SDRAM, SODIMM (204-pin)

• Data Rate: DDR3-1600 (PC3-12800)

• Rank/Organization: 2Rx8 (dual rank, 8-bit wide)

• Chip configuration: Sixteen 512M x 8-bit FBGA components

• Contact: Gold fingers

• Standard: JEDEC-compliant

 Features

• Operates at 1.35V (low voltage) or 1.5V

• VDDQ: 1.35V / 1.5V

• Frequency: 800 MHz (effective 1600 MT/s per pin)

• CAS Latency (CL): Programmable 5–11 (JEDEC standard CL11 at 1600)

• Additive Latency: 0, CL–2, or CL–1 clock

• Burst Length: 8 (interleaved unlimited, sequential with address "000"), 4 with tCCD=4

• Prefetch: 8-bit

• Data strobe: Bi-directional differential

• Calibration: Internal ZQ self-calibration (RZQ = 240Ω ±1%)

• On-Die Termination (ODT): Supported

• Refresh:

  • 7.8 µs (Tcase ≤ 85 °C)

  • 3.9 µs (85 °C < Tcase < 95 °C)

• Reset: Asynchronous reset supported

• PCB height: 30 mm (1.18”), double-sided

 Specifications

• CL (IDD): 11 cycles

• tRC (Row Cycle Time): ≥ 48.125 ns

• tRFC (Refresh to Active/Refresh Command Time): ≥ 260 ns

• tRAS (Row Active Time): ≥ 35 ns

• UL Rating: 94 V-0

Operating Conditions

• Operating temperature: 0 °C to 85 °C

• Storage temperature: –55 °C to +100 °C
