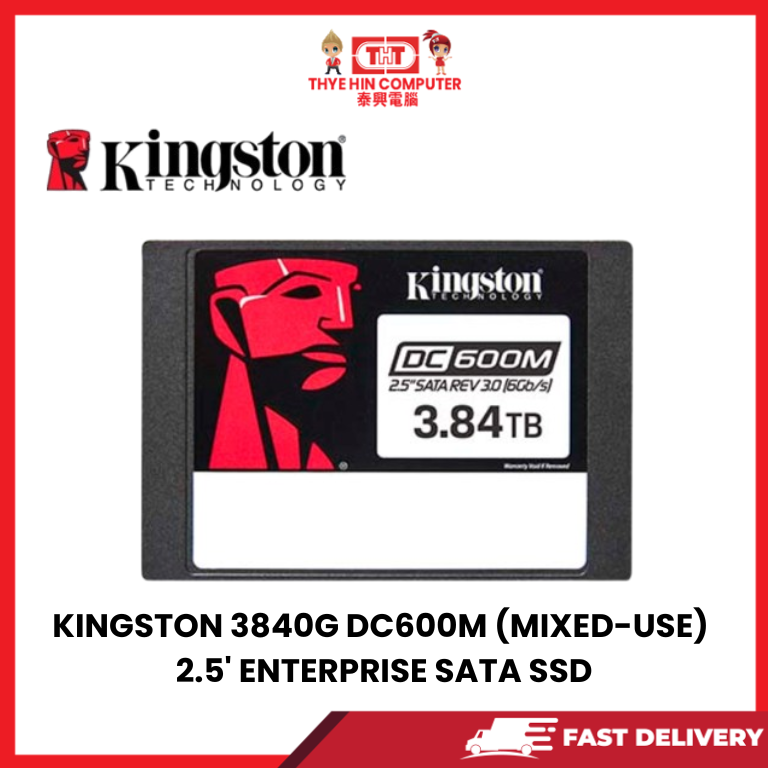

Form Factor: 2.5 inch
-
Interface: SATA Rev. 3.0 (6 Gb/s), backward compatible with SATA Rev. 2.0 (3 Gb/s)
-
Capacity Options: 3.84T
-
NAND: 3D TLC
-
DRAM Cache: Yes
Performance
-
Sequential Read/Write: 560 MB/s / 530 MB/s (for 3.84TB model)
-
Random 4K IOPS (Steady-State): 94,000 / 59,000 (Read/Write)
-
QoS Latency (99.999%): ~200 µs (Read) / ~300 µs (Write)
-
Typical Latency: <200 µs (Read) / <30 µs (Write)
Enterprise Features
-
Hot-plug capable
-
Static & dynamic wear leveling
-
Enterprise SMART tools (reliability tracking, usage stats, life remaining, wear leveling, temperature)
-
Hardware-based power loss protection (PLP)
Endurance (TBW)
-
3.84TB Model: 7,008 TBW
-
Rated: 1 DWPD (Drive Writes Per Day) for 5 years / 1.66 DWPD for 3 years
Power Consumption
-
Idle: 1.30 W
-
Average: 1.45 W
-
Max Read: 1.6 W
-
Max Write: 3.6 W
Environmental
-
Operating Temperature: 0 °C – 70 °C
-
Storage Temperature: –40 °C – 85 °C
Physical
-
Dimensions: 69.9 mm × 100 mm × 7 mm
-
Weight: 92.34 g
Reliability
-
MTBF: 2 million hours
-
Vibration (Operating): 2.17 G Peak (7–800 Hz)
-
Vibration (Non-Operating): 20 G Peak (10–2000 Hz)
-
UBER: ≤10^–17
