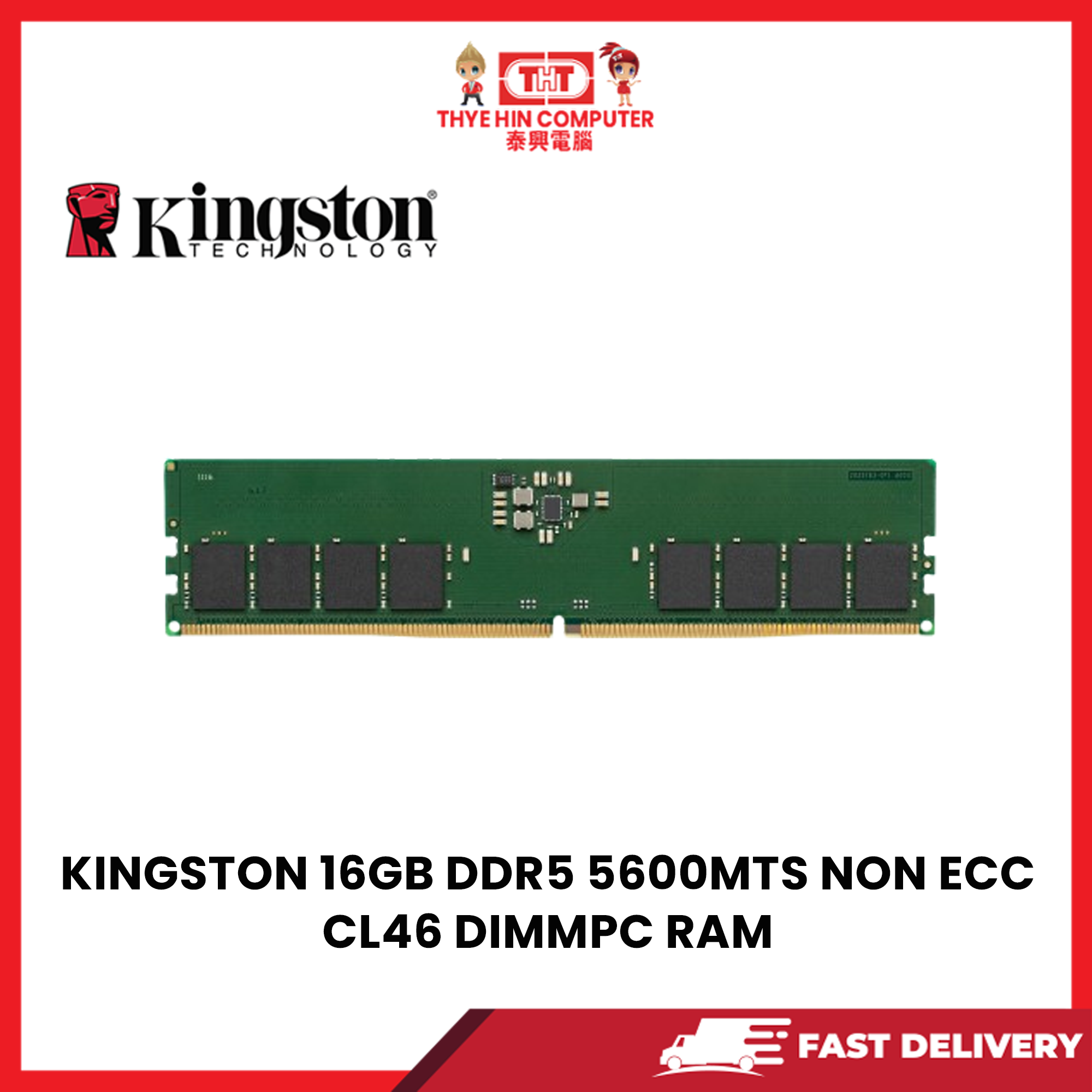

KINGSTON 16GB DDR5 5600MTS NON ECC CL46 DIMM 1RX8 PC RAM [SBN:NO NILAI:YES MELAKA:NO HPS:NO]

KINGSTON 16GB DDR5 5600MTS NON ECC CL46 DIMM 1RX8 PC RAM

KVR56U46BS8-16
16GB 1Rx8 2G x 64-Bit
PC5-5600 CL46 288-Pin DIMM

FEATURES
This document describes ValueRAM's KVR56U46BS8-16 as a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8 memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

CL(IDD):
46 cycles

Row Cycle Time (tRCmin):
48ns (min.)

Refresh to Active/Refresh Command Time (tRFCmin):
295ns (min.)

Row Active Time (tRASmin):
32ns (min.)

UL Rating:
94 V-0

Operating Temperature:
0°C to +85°C

Storage Temperature:
-55°C to +100°C

Power Supply:
VDD: 1.1V Typical
VDDQ: 1.1V Typical
VPP: 1.8V Typical
VDDSPD: 1.8V to 2.0V

Additional Features:
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
