JCD543 USB-C TRIPLE MONITORS DOCKING STATION [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Name: JCD543 USB-C TRIPLE MONITORS DOCKING STATION [SBN:NO NILAI:NO MELAKA:NO HPS:NO] | Thye Hin Computer
SKU: D4523
Price: 359.00 MYR
Availability: OutOfStock

RM359.00

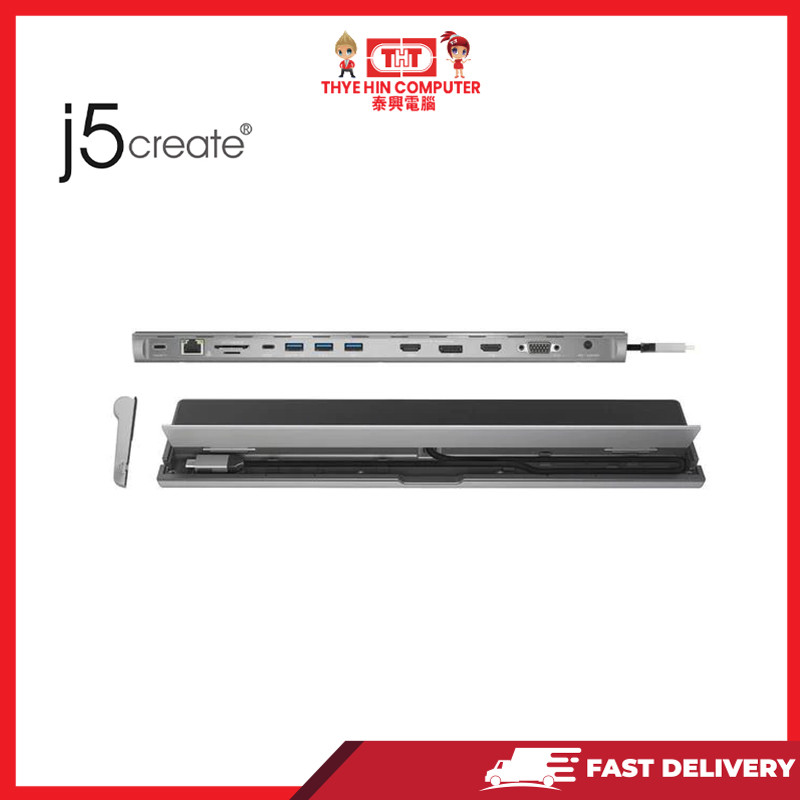

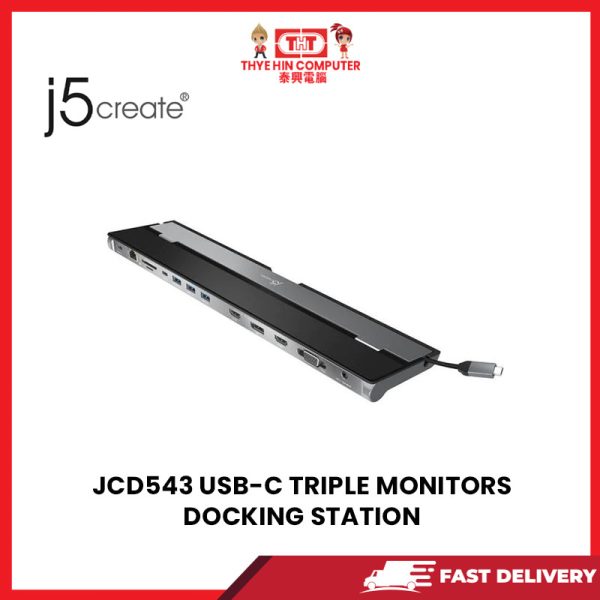

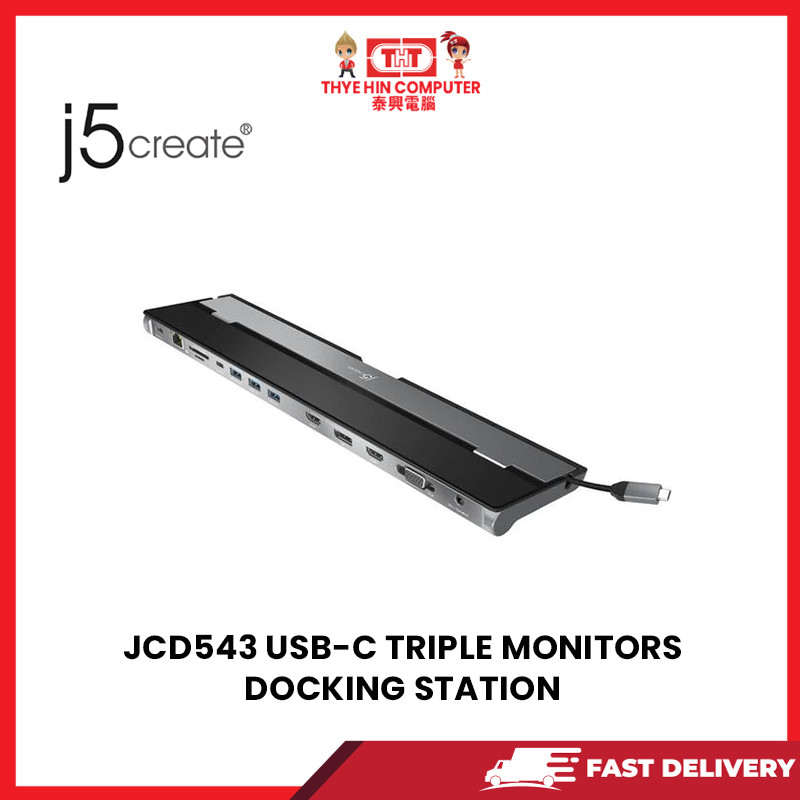

The USB-C^™ Triple Monitor Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI^™, VGA and DisplayPort^™ or HDMI^™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C^™ cord, it keeps in mind the location of the USB-C^™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB^™ 3.1/SD^™/microSD^™ computer peripheral, HDMI^™/DisplayPort^™/VGA monitor and Gigabit Ethernet through your USB^™ port. One of the USB^™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad^®. The USB-C^™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Features:

• USB-C™ power delivery 100W pass-through

• USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1

• USB™ Type-A downstream port Gen 1 5G x3

• DisplayPort™ Alt mode supported

• DisplayPort™/HDMI™ output 4K @ 30 Hz

• Dual output through USB^™ graphic HDMI^™ with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080

• RJ45 Gigabit Ethernet

• SD™/microSD™ card slots allow for external memory access

• Combo audio jack mic/speaker

• Cable length 1.5 ft/45 cm

USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.

Out of stock

SKU: D4523 Categories: Accessories, Docking Station

JCD543 USB-C TRIPLE MONITORS DOCKING STATION

Interface
Host Interface USB-C™ male connector with cable

Video Interface
HDMI™ female connector x 2
DisplayPort™ female connector x 1
VGA female connector x 1

USB-C™ Port
USB-C™ downstream port female connector x 1
USB-C™ power in port female connector x1

Ethernet Port RJ45 female connector (Gigabit Ethernet) x 1
USB™ Port USB™ Type-A 3.1 5G female connector x 3

Card Slots
SD™ 3.0 x 1 Slot
microSD™ 3.0 x 1 Slot

Combo Audio Jack Microphone and speaker

Power
Power Mode Bus-powered or self-powered

Functions
DisplayPort™ Alt Mode       Display resolution: 4K @ 30 Hz
HDMI™       Display resolution: 4K @ 30 Hz
VGA       Display resolution: 1920 x 1080 @ 60 Hz

USB-C™
Power delivery 3.0 x 1
USB-C™ 3.1 port x 1

USB™
USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps)
BC 1.2 port x 1

Ethernet
Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
• Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
• Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering

Physical Specifications
Dimensions
Main body: 82.5 (W) x 23.4 (H) x 350 (D) mm
USB-C™ cable length: 1.5 ft/450 mm

Weight
Main body: Approximately: 0.66 lbs./300g

Environmental
Storage Temperature   -10 – 65°C
Storage Humidity   < 85% non-condensing
Operation Temperature   0 – 40°C
Operation Humidity   < 85% non-condensing

System Requirements
• Available USB-C™ DisplayPort™ Alt mode
• Available USB-C™ port (USB™ 3.0 is recommended)
• Available USB™ power delivery over USB-C™ to support upstream charging
• 4K capable graphics card
• Microsoft® Windows® 10 (32-bit or 64-bit)
• macOS® 10.8 or later

Notes
• If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the power delivery port to ensure maximum performance.
• To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0.
• When using a high-power consumption device it is recommended that you use a power adapter for optimal performance. The power adapter for this docking station can be purchased separately (JUP2290) or the docking station and the power adapter can be purchased together (JCD543P)

Extended Monitor System Requirements
• One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
• CPU: Intel® Core™ i5 Quad Core RAM: 4 GB memory or higher
• Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
• CPU: Intel® Core™ i7 Quad Core
• Higher processor recommended for multi-displays and optimal performance.

Package Contents
• USB-C™ Triple Monitor Docking Station
• Quick Installation Guide
