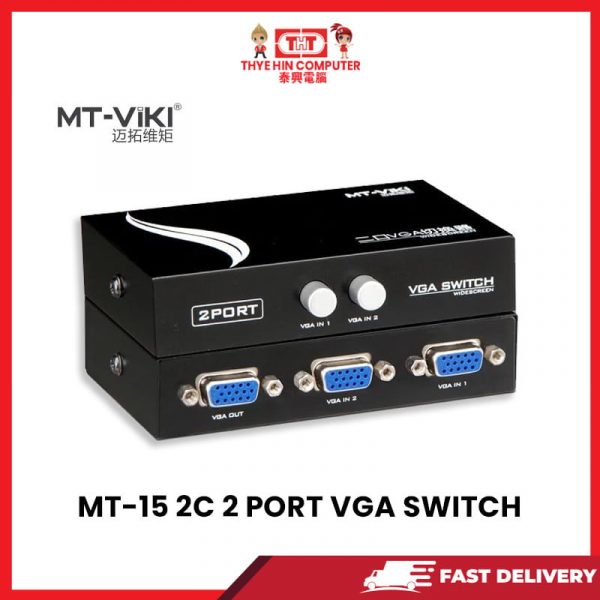

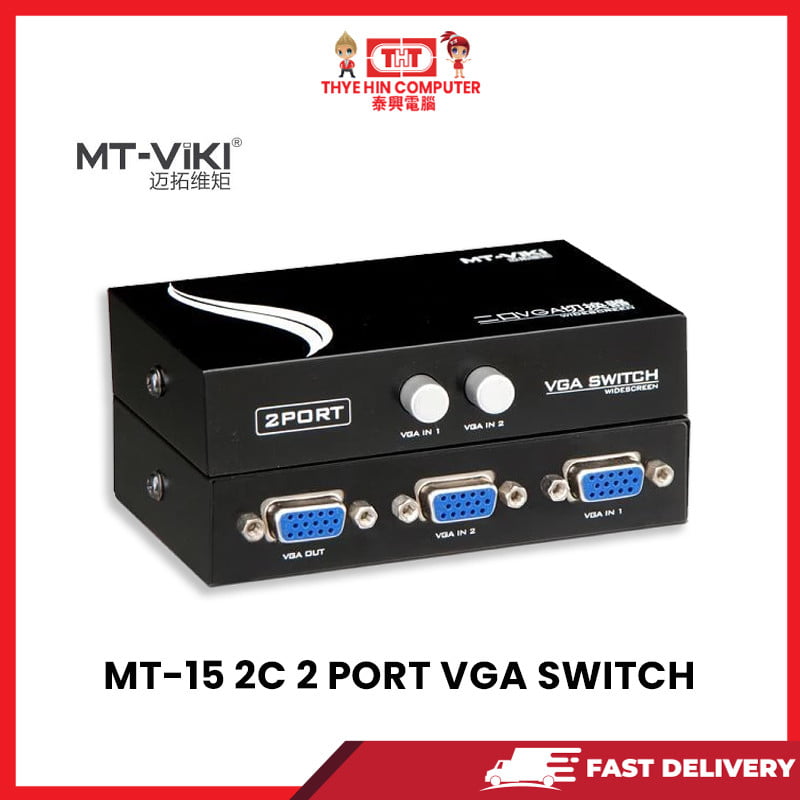

J02 MT-15-2C 2 PORT VGA SWITCH

Product Features:

• 2 sets of VGA signals can be displayed on a single source to monitor or projector
• Taiwan can also display a VGA signal source on the display or projector
• Use the front panel buttons to easily switch signal source, a mechanical switch, high reliability and durability
• Easy to install – no need to install any software
• Long-distance transmission, the farthest up to 10 meters
• High-quality video – the highest resolution up to 1920 x 1440
• Does not support DDC, DDC2, DDC2B
• Supports VGA, XGA, SVGA, UXGA, and Multisync monitors
• No external power supply, easy to use
• Suitable for multi-display devices: 2 share a computer or two computers share one display device
• Suitable for long-term change the display setting friends

Interface Description:

• A computer connected to two monitors or two computers connected to a monitor

Specifications:

• Type: 2 steel VGA Switcher
• Switch Type: Button switch
• Automatic Detection: Monitor DDC information to ensure the best resolution
• Power Supply: No power supply needed
• Input and Output Ports: Female, requires male to male VGA cable (for pin)
• Operation Instructions:
  • If two computers are A and B, respectively, connect them to the serial converter A and B interfaces.
  • Connect the serial port to the upper left corner of the display I/O interface to complete the connection.
  • To use computer A, press the A button on the converter; the display will show computer A information.
  • To switch to computer B, press the corresponding button.
  • This simple operation saves wiring troubles and provides convenience.

Product Parameters:

• Input Interface: 1 channel VGA 15HDF interface input
• Output Interface: 2-way VGA 15HDF output interface
• Input Level: 0.5-1Vp-p
• Output Impedance: 75Ω
• Horizontal and Vertical Sync Channels: Input level 0.7-5Vp-p
• Resolution: Corresponding to the display device
• Switch Mode: Panel key switch
