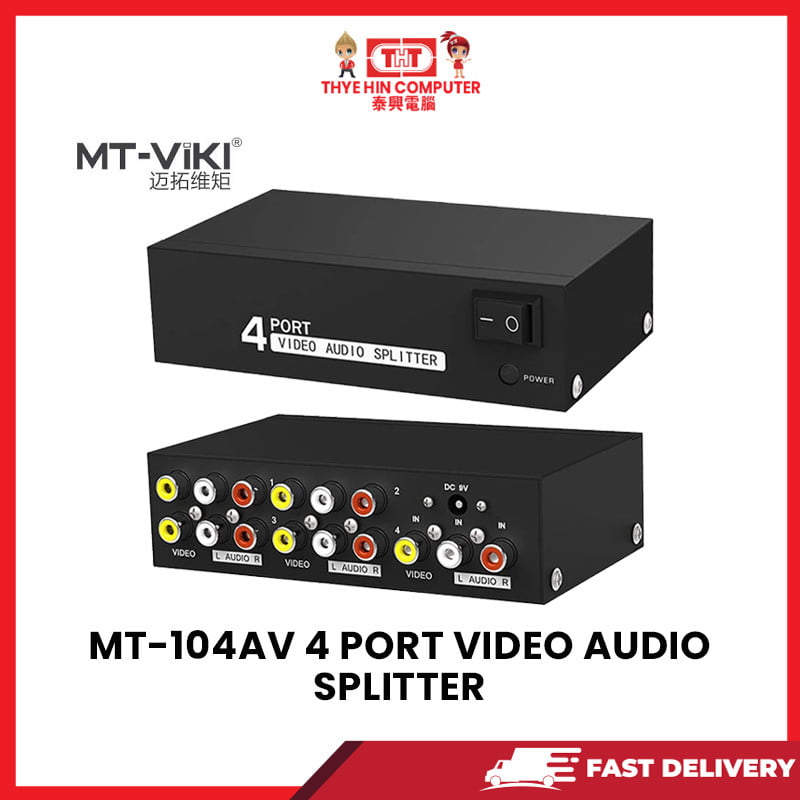

J02 MT-104AV 4 PORT VIDEO AUDIO SPLITER [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

J02 MT-104AV 4 PORT VIDEO AUDIO SPLITER

Description:

• On/Off switch
• LED power indicator
• 1 AV input signal split to 4 AV outputs
• Powered by AC adapter; No additional software needed
• Strong insulation and anti-jamming

Specification:

Video:

• Rated Input Signal Level and Impedance: VS 0.8-1.0Vp-p/75Ω
• Rated Output Signal Level and Impedance: VS 0.8-1.0Vp-p/75Ω
• Frequency: 50Hz-5.5MHz
• Input: 1
• Output: 4

Audio:

• Rated Input Signal Level and Impedance: VS 0.8-1.0Vp-p/75Ω
• Rated Output Signal Level and Impedance: VS 0.8-1.0Vp-p/75Ω
• Frequency: 10Hz-20KHz, 0dB
• Input: 1 (The left and right channels)
• Output: 4 (The left and right channels)
• DC: 9V

Physical Specifications:

• Shell: Metal
• Size: 22.5cm x 11.5cm x 5cm
• Net Weight: 0.35KG (not including the cable)

Usage:

• This 4 Port Video Audio AV 3RCA Switch Splitter Box is designed for HDTV DVD.
• It enables 4 AV output devices to share 1 AV input.
• Suitable for use in homes, offices, restaurants, shopping plazas, hotels, factories, etc.
• It shows the one AV input on 4 different AV output devices like TV or other devices with a standard AV (yellow-red-white) connector.
