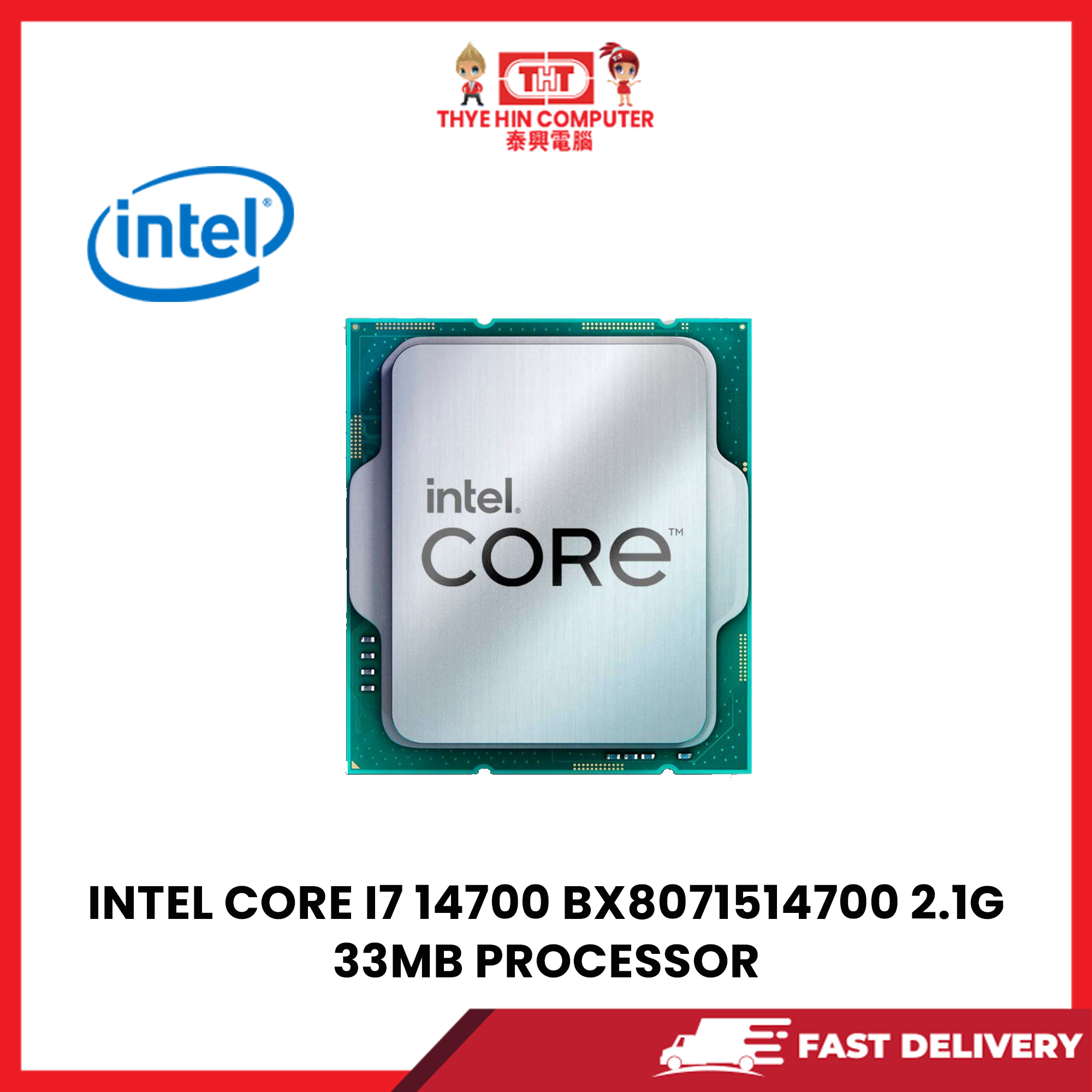

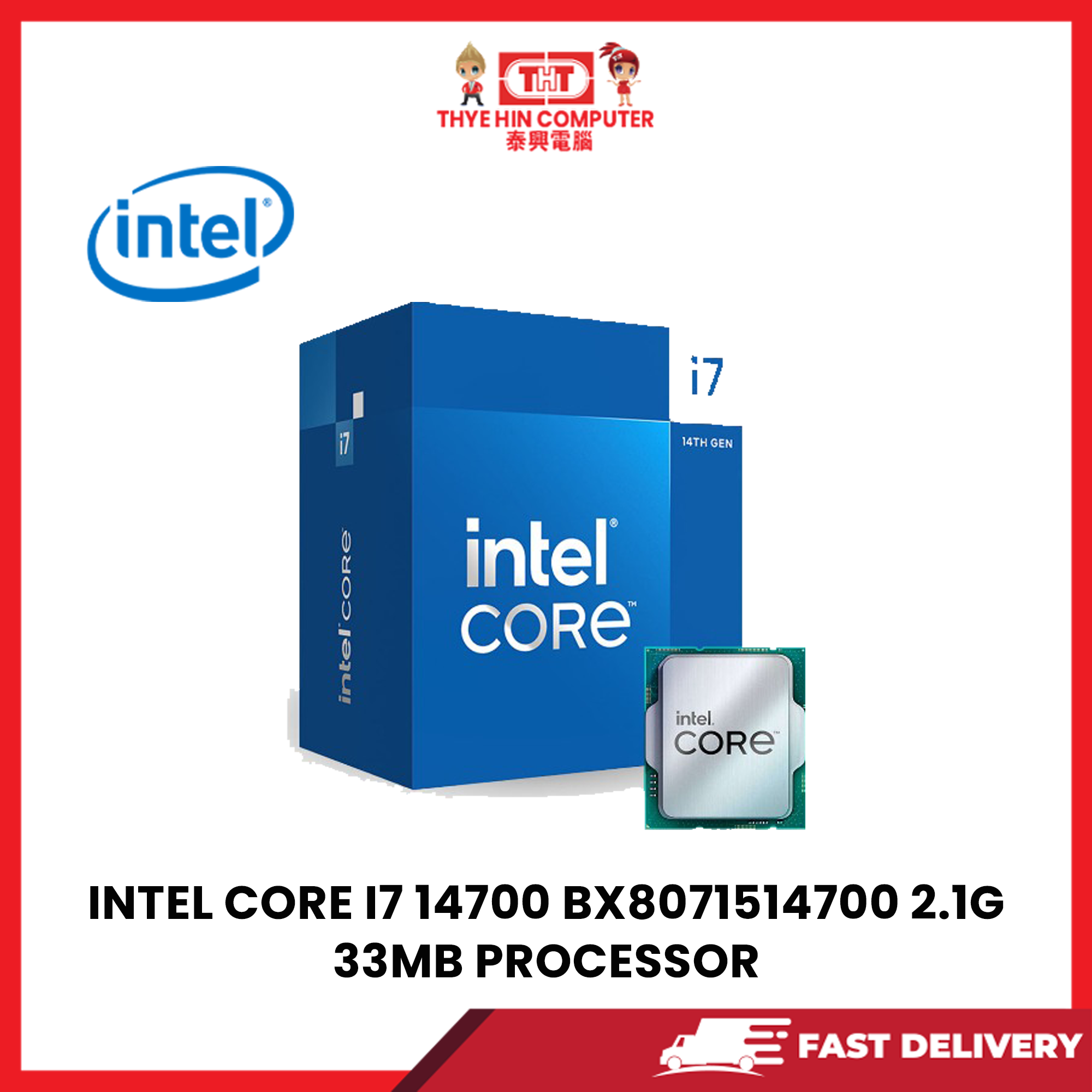

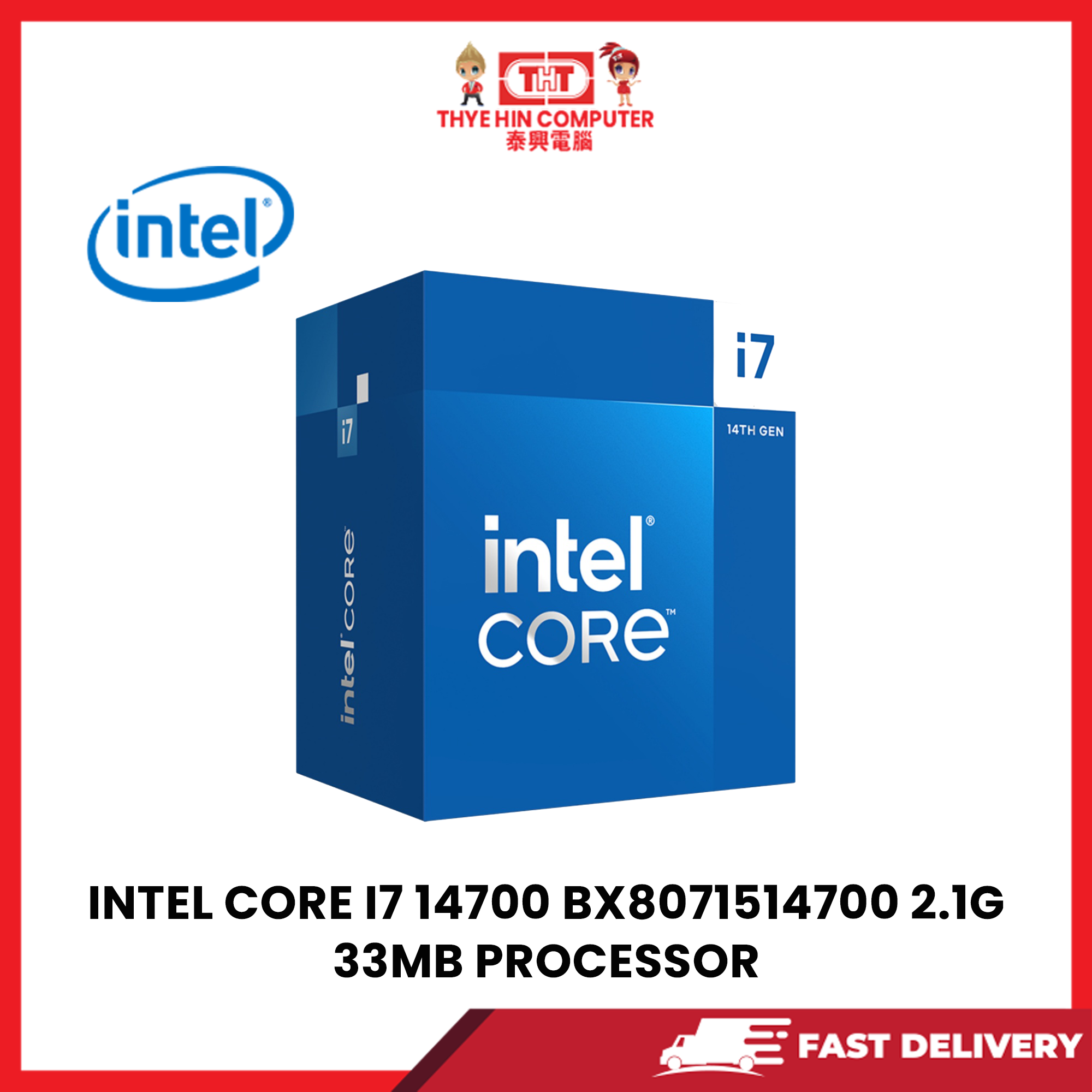

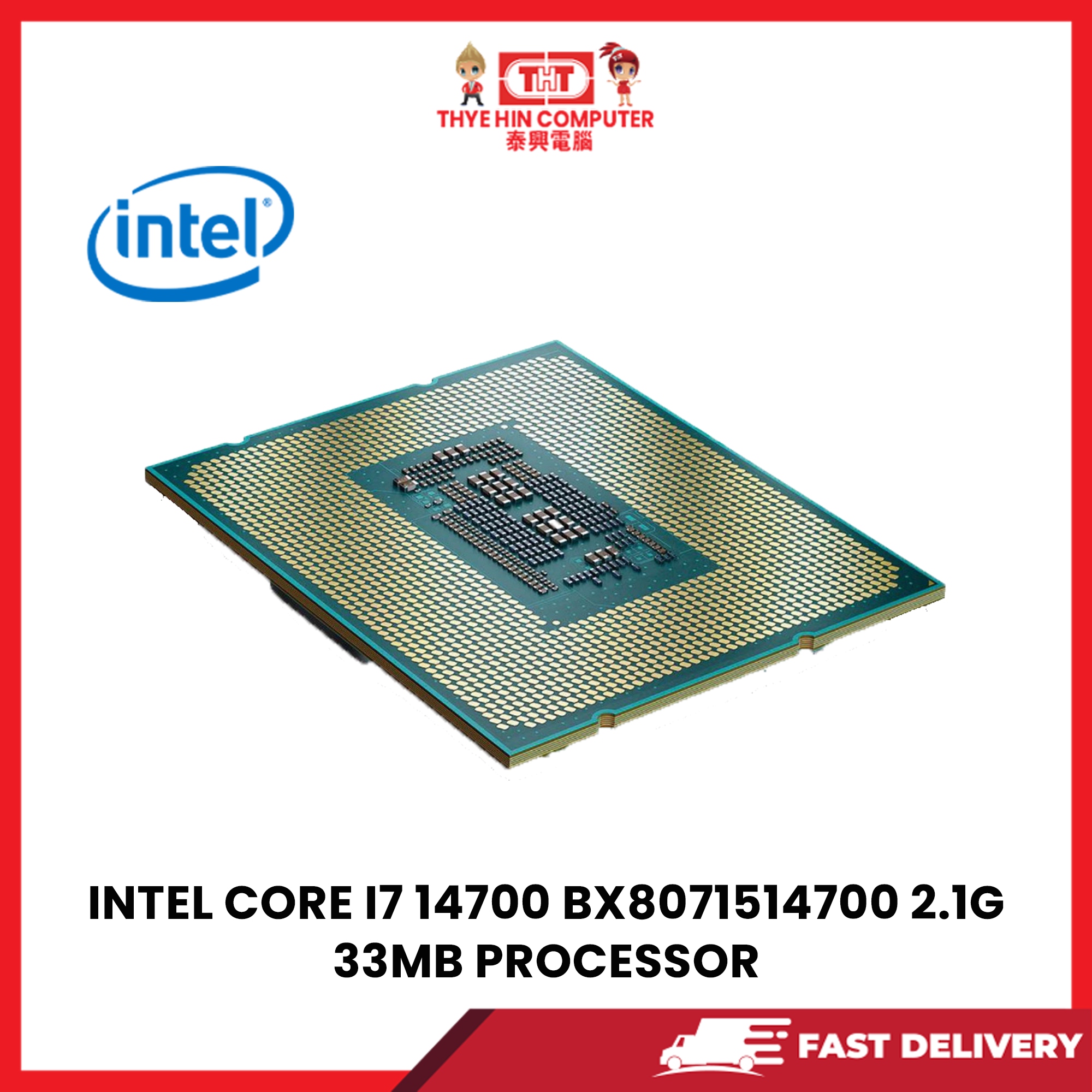

INTEL CORE I7 14700 BX8071514700 2.1G 33MB PROCESSOR [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM1959.00
Out of stock
INTEL CORE I7 14700 BX8071514700 2.1G 33MB PROCESSOR
| Weight | 2.47661 kg |
|---|---|
| Processor family |
Intel® Core™ i7 |
| Processor cores |
20 |
| Processor socket |
LGA 1700 |
| Box |
Yes |
| Cooler included |
Yes |
| Processor manufacturer |
Intel |
| Processor model |
I7-14700 |
| Processor operating modes |
64-bit |
| Processor generation |
Intel Core i7-14xxx |
| Processor threads |
28 |
| Performance cores |
8 |
| Efficient cores |
12 |
| Processor boost frequency |
5.4 GHz |
| Performance-core boost frequency |
5.3 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core boost frequency |
4.2 GHz |
| Efficient-core base frequency |
1.5 GHz |
| Processor cache |
33 MB |
| Processor cache type |
Smart Cache |
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Stepping |
B0 |
| Maximum number of DMI lanes |
8 |
| Memory bandwidth supported by processor (max) |
89.6 GB/s |
| Processor codename |
Raptor Lake |
| Processor ARK ID |
236781 |
| Memory channels |
Dual-channel |
| Maximum internal memory supported by processor |
192 GB |
| Memory types supported by processor |
DDR4-SDRAM, DDR5-SDRAM |
| ECC |
Yes |
| Memory bandwidth (max) |
89.6 GB/s |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Discrete graphics card model |
Not available |
| On-board graphics card outputs supported |
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
| On-board graphics card base frequency |
300 MHz |
| On-board graphics card dynamic frequency (max) |
1600 MHz |
| Number of displays supported (on-board graphics) |
4 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card maximum resolution (DisplayPort) |
7680 x 4320 pixels |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) |
5120 x 3200 pixels |
| On-board graphics card maximum resolution (HDMI) |
4096 x 2160 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) |
60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) |
120 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) |
60 Hz |
| On-board graphics card ID |
0xA780 |
| Number of execution units |
32 |
| Multi-Format Codec Engines |
2 |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Market segment |
Desktop |
| Use conditions |
Workstation, PC/Client/Tablet |
| Maximum number of PCI Express lanes |
20 |
| PCI Express slots version |
4.0, 5.0 |
| PCI Express configurations |
1×16+1×4, 2×8+1×4 |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Scalability |
1S |
| CPU configuration (max) |
1 |
| Embedded options available |
Yes |
| Direct Media Interface (DMI) Revision |
4.0 |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency |
5.4 GHz |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 |
Yes |
| Intel® Control-flow Enforcement Technology (CET) |
Yes |
| Intel® Thread Director |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Turbo Boost Max Technology 3.0 |
Yes |
| Intel® Boot Guard |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Tjunction |
100 °C |
| OpenCL version |
3.0 |
| Harmonized System (HS) code |
8542310001 |
| Processor package size |
45 x 37.5 mm |
| L2 cache |
28672 KB |
| Maximum internal memory |
192 GB |
| Launch date |
Q1'24 |
| Status |
Launched |
| Graphics output |
EDP 1.4b, DP 1.4a, HDMI 2.1 |
| Weight | 2.48 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 cm |
