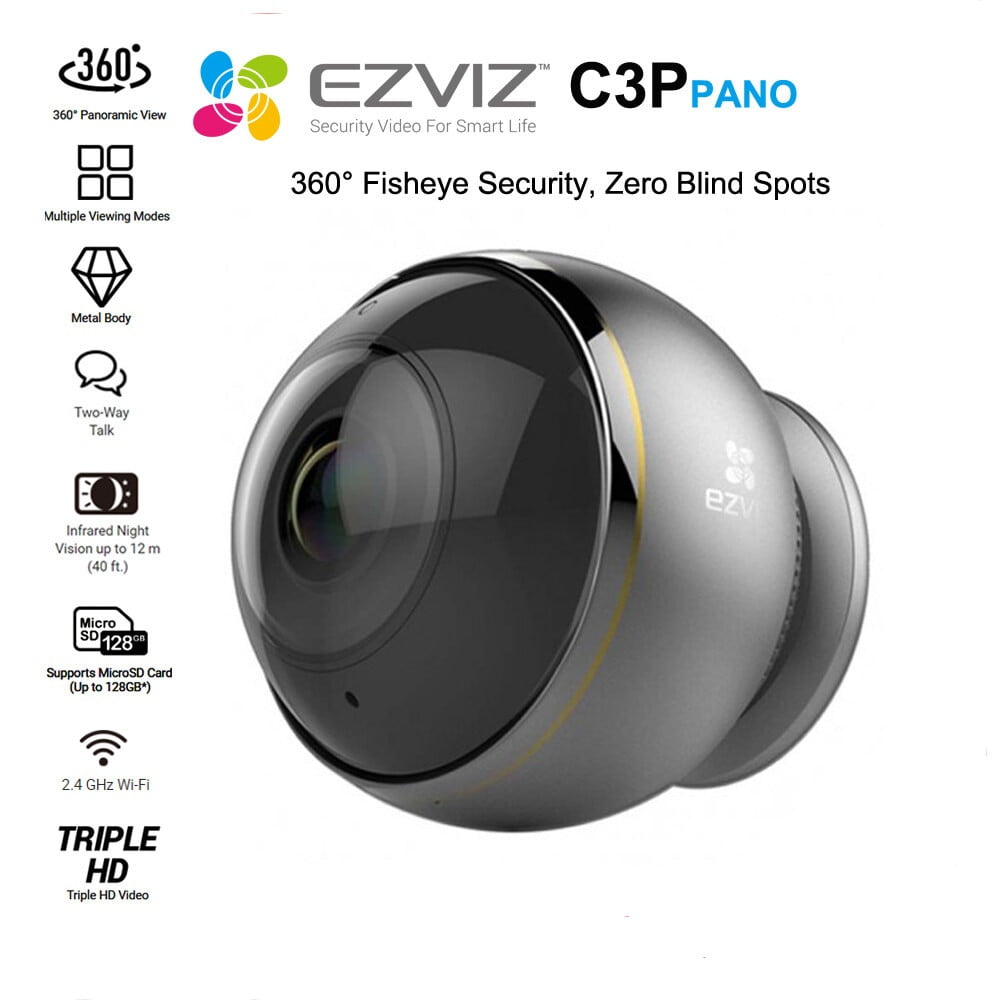

EZVIZ CV346 3 MP MINI PANO CAMERA WIRELESS [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM459.00
Out of stock
| Model Parameters | |
|---|---|
| Model | CS-CV346-A0-7A3WFR |
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Minimum Illumination | 0.01 lux @(F2.2,AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 1.2mm@ F2.2, Horizontal angle: 180° Diagonal angle: 180° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Progressive WDR |
| Compression | |
| Video Compression | H.264 |
| H.264 Type | Main profile |
| Video Bit Rate | HD, Balanced and Smooth. Adaptive bit rate |
| Image | |
| Max. Resolution | 1344×1344 |
| Image setting | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support |
| Network | |
| Storage | Support Micro SD card (Max. 128G) |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | SmartConfig (Wi-Fi One-Key Configuration) |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| General Features | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Minimum Network Requirements | 2Mbps |
| Wi-Fi | |
| Standard | IEEE802.11a/b/g/n/ac |
| Frequency Range | 2.412GHz ~ 2.462GHz/5.15GHz ~ 5.35GHz/ 5.725GHz ~ 5.825GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
| General | |
| Operating Conditions | -10°C ~ 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V ±5% |
| Power Consumption | Max. 8W |
| IR Range | Max. 7.5meters |
| Product Dimensions | 70mm x 70mm x 70.6mm |
| Packaging Dimensions | 109.5mm x 109.5mm x 123mm |
| Weight | 222g |
| Weight | 1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
