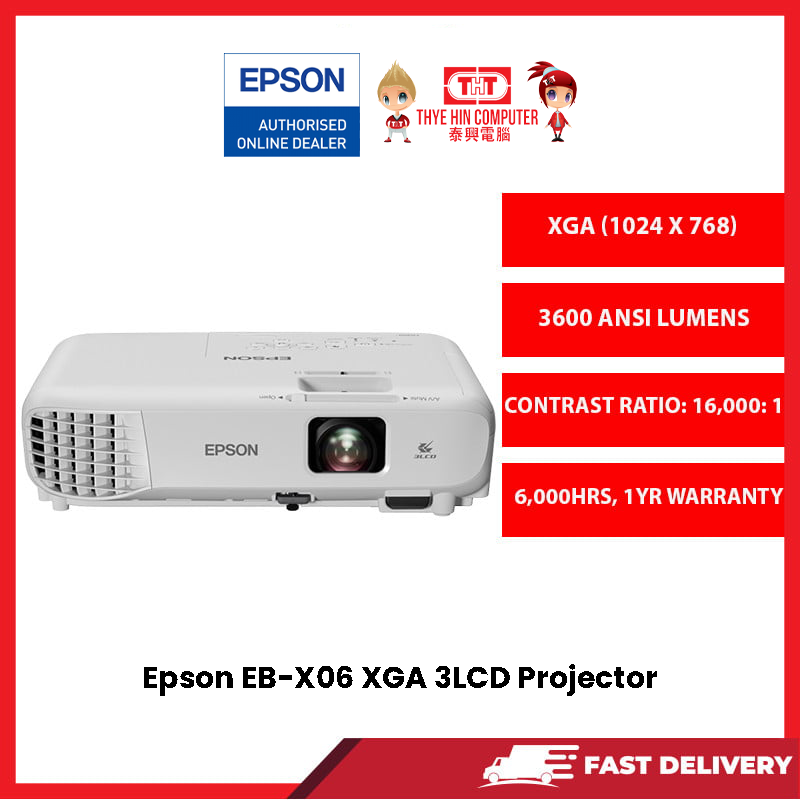

Epson EB-X06 XGA 3LCD Projector (XGA RES,3600ANSI LUMENS,KEYSTONE SLIDER) [SBN:YES NILAI:NO MELAKA:YES HPS:NO]

Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness2:

---

White Light Output (Normal/Eco):3,600 lmColour Light Output:3,600 lm

Connectivity:

---

USB Interface:USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wireless: Optional (ELPAP11)Analog Input:Composite: 1 RCA
D-Sub 15pin: 1Digital Input:HDMI: 1 (MHL not supported)Audio Input:2 RCA: 1

Contrast Ratio:

---

Contrast Ratio:16,000:1

Screen Size (Projected Distance):

---

Standard Size:Tele: 30” to 300” [1.07 to 10.95 m] Wide: 30” to 300” [0.89 to 9.12 m]

Geometric Correction:

---

Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)Quick Corner:Yes

Operating Temperature:

---

Operating Temperature:Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

---

Operating Altitude:0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

---

Start-Up Period:Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

---

Cool Down Period:Instant Off

Direct Power On/Off:

---

Direct Power On/Off:Yes

Dimension Excluding Feet (W x H x D):

---

Dimension Excluding Feet (W x H x D):302 x 77 x 234 mm

Weight:

---

Weight:Approx. 2.5 kg

Air Filter:

---

Type:High Efficiency FilterMaintenance Cycle:6,000 / 12,000 hours*3

Fan Noise:

---

Fan Noise (Normal / Eco):37dB / 28dB

Power:

---

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Projectors Facets:

---

Resolution, Projectors Facets:XGAContrast Ratio, Projectors Facets:16,000:1Brightness Range Lumens, Projectors Facets:2000Features, Projectors Facets:Wifi
Quick CornerLaser / Lamp, Projectors Facets:Lamp

Optional Wireless & Built In Lan Specifications:

---

Supported Speed for each Mode:IEEE 802.11a (5GHz): 54Mbps*2Wireless LAN Security:Access Point: OPEN, WPA2-PSK (AES)

Optional Wireless Specifications:

---

Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:

---

LCD:Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)Lightsource:Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hoursAspect Ratio:4:3Projection Lens:F-Number: 1.49 – 1.72
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1 – 1.2
Throw Ratio1.48 – 1.77 (Wide to Tele)

Compelling Projection
Bring images to life in the classroom with Epson’s XGA resolution projectors. Projecting up to 3,600 lm brightness, you can now present your materials to the class with brighter pictures in better colours and contrasts. Leave a more convincing and stronger presentation to your peers and students with Epson’s projectors today.



Auto Vertical Keystone
Saving setup time, Auto Vertical Keystone automatically detects and corrects image distortion when the foot lever is used to adjust the height of a projected image.



Horizontal Keystone Slider
With the easy-to-use sliding Horizontal Keystone Slider, screen corrections can be done quickly, easily, and accurately, even in a limited space.



Optical Zoom

Optical zoom provides the flexibility to adjust the projector’s installation location while still maintaining the desired picture size and quality.
