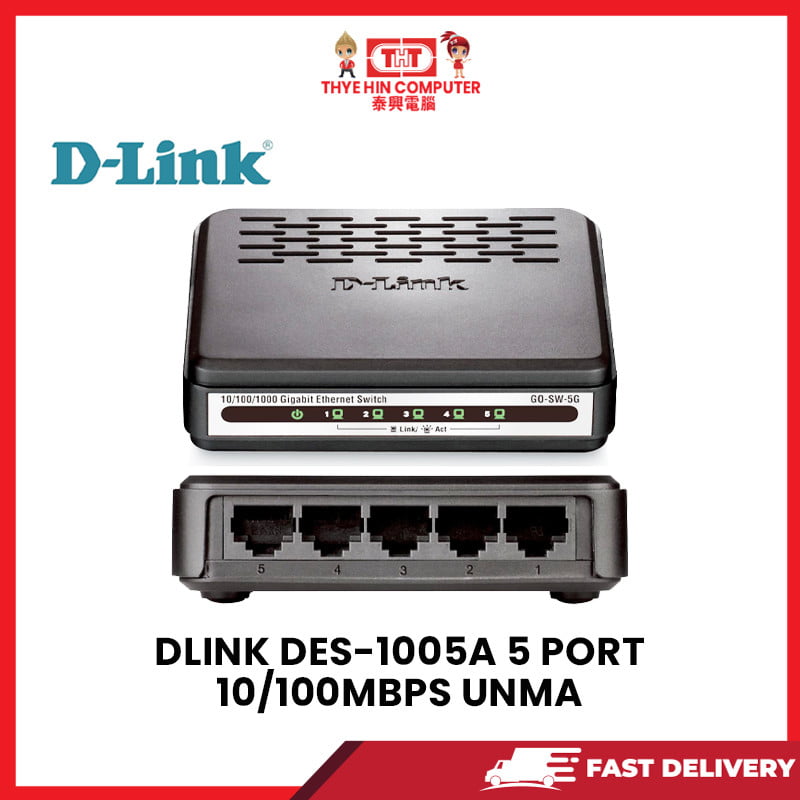

DLINK DES-1005A 5-PORT 10/100MBPS UNMANAGED SWITCH [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Name: DLINK DES-1005A 5-PORT 10/100MBPS UNMANAGED SWITCH [SBN:NO NILAI:NO MELAKA:NO HPS:NO] | Thye Hin Computer
SKU: N2838
Price: 49.00 MYR
Availability: OutOfStock

RM49.00

-Blazing Fast
-Plug and Play
-Compact Design

Out of stock

SKU: N2838 Categories: Brand, Dlink, Network Switches, Networking

Standards		IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3az EEE power saving
Switching Fabric		1 Gbps switching fabric
Topology		Star
Protocol		CSMA/CD
Data Transfer Rates		Ethernet 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet 100 Mbps (half duplex) 200 Mbps (full duplex)
Media Interface Exchange		Auto MDI/MDIX adjustment for all ports
Network Cables		10BASE-T: UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators		Per port: Link/Activity Per device: Power
Transmission Method		Store-and-forward
MAC Address Table		2K entries per device
MAC Address Learning		Automatic update
Packet Filtering/Forwarding Rates		Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
RAM Buffer		48 KB per device
Dimensions		87 x 47.85 x 21.7mm (3.42 x 1.88 x 0.85 inches)
DC Input		External 5V/0.55A power adapter
Power Consumption		Power On (Standby): DC input: 0.1 watts AC input: 0.69 watts Maximum: DC input: 0.9 watts AC input: 1.6 watts
Heat Dissipation		Power On (Standby) AC input: 2.355 BTU/h Maximum AC input: 5.461 BTU/h
Temperature		Operating: 0 to 40 ˚C (32 to 104 ˚F) Storage: -10 to 70 ˚C (14 to 158 ˚F)
Humidity		Operating: 10% to 90% RH non-condensing Storage: 5% to 90% RH non-condensing
Certifications		FCC Class B CE Class B UL C-Tick Class B CB
