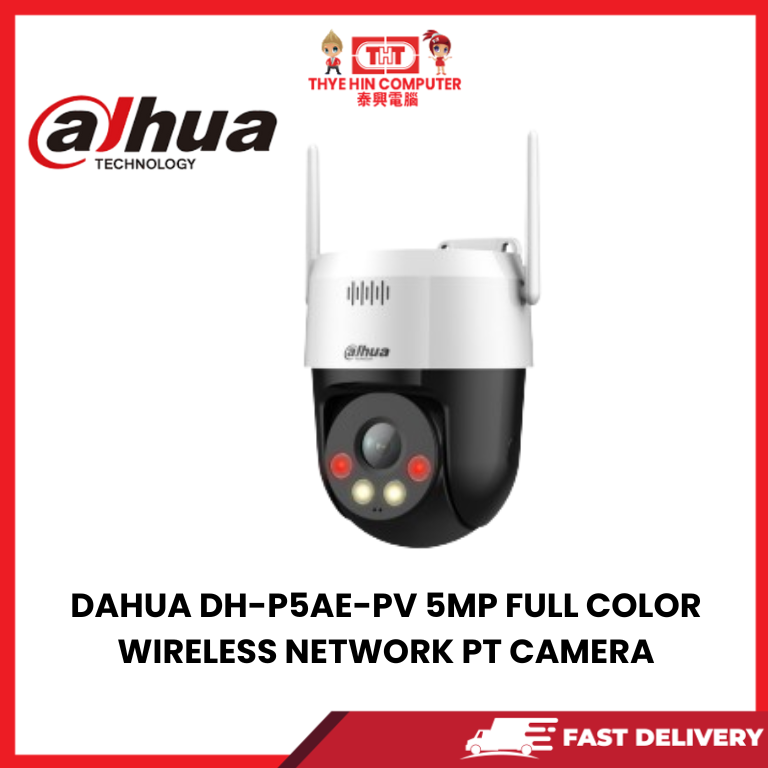

DAHUA DH-P5AE-PV 5MP FULL COLOR WIRELESS NETWORK PT CAMERA [SBN:NO NILAI:YES MELAKA:NO HPS:NO]

Camera

• Image Sensor: 1/2.8" CMOS

• Effective Pixels: 5 MP

• Max Resolution: 2560 × 1920

• Electronic Shutter Speed: 1 s – 1/100,000 s

• Illuminators: 2 × IR lights, 2 × warm lights

Lens

• Focal Length: 4.0 mm

• Max Aperture: F1.6

• Field of View (4.0 mm):

  • Horizontal: 80.4°

  • Vertical: 58.1°

  • Diagonal: 104.8°

• Close Focus Distance: 0.3 m (0.98 ft)

PTZ (Pan-Tilt-Zoom)

• Pan Range: 0° – 345°

• Tilt Range: 0° – +80°

• Presets: 300

Smart Events

• IVS: Tripwire, intrusion, linkage tracking

• Human Detection: Yes

• SMD: SMD 3.0

Active Deterrence

• Light Warning: Warm light, flash duration 5–30 s, frequency adjustable (high/medium/low)

• Sound Warning:

  • 1 default alarm + 10 custom alarms (importable)

  • Volume adjustable 0–100%

  • Play times adjustable 1–10

Video

• Compression: Smart H.265+, H.265, Smart H.264+, H.264 (B/M/H), MJPEG (sub stream)

• Supported Resolutions:

  • 5M (2560 × 1920)

  • 4M (2560 × 1440)

  • 3M (2304 × 1296)

  • 1080p (1920 × 1080)

  • 720p (1280 × 720)

  • D1 (704 × 576 / 704 × 480)

  • CIF (352 × 288 / 352 × 240)

• Frame Rate:

  • Main stream: up to 30 fps (5M/4M/3M/1080p/720p)

  • Sub stream: up to 30 fps (D1/VGA/CIF)

• Bitrate:

  • H.264: 104 kbps – 8192 kbps

  • H.265: 41 kbps – 8192 kbps

• Day/Night: Auto (ICR), Color, B/W

• WDR: DWDR

• Image Rotation: 180°

Audio

• Compression Formats: PCM, G.711a, G.711Mu, G.726

Network

• Port: RJ-45 (10/100 Base-T)

• Wi-Fi Standard: IEEE802.11b/g/n

• Wi-Fi Frequency: 2.4 GHz

• Storage: Micro SD card (up to 256 GB), FTP

• Browser Support: IE 7+, Chrome, Firefox, Safari

• Management Software: Smart PSS, DMSS, Player, ConfigTool, NVR, Smart Player

• Mobile Client: iOS, Android

Certification

• CE Certified

Power

• Supply: 12 VDC, 1 A ±10% (adapter included)

Environment

• Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)

• Operating Humidity: ≤95% (non-condensing)

Structure

• Dimensions: 14.05 × 11.1 × 11.1 cm (L × W × H)

• Net Weight: 0.5 kg

• Gross Weight: 1.0 kg
