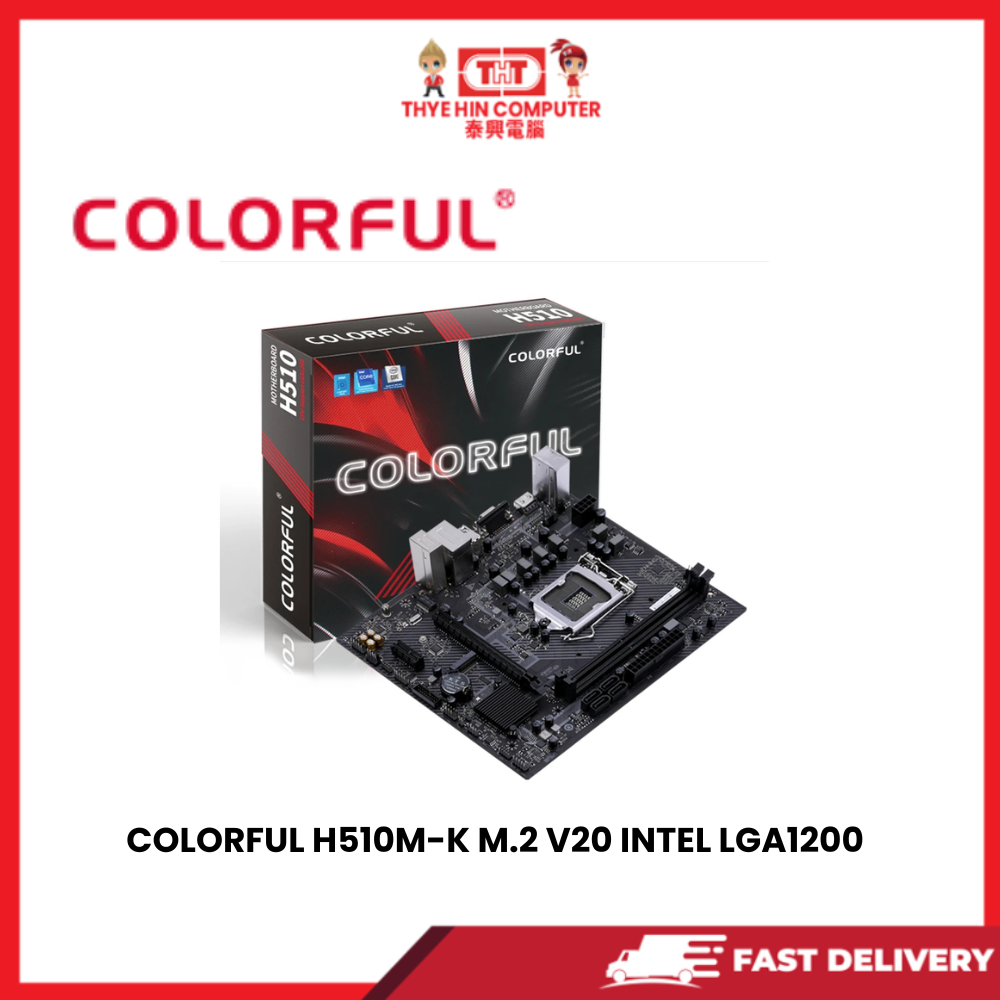

COLORFUL H510M-K M.2 V20 INTEL LGA1200 [SBN:NO NILAI:YES MELAKA:NO HPS:NO]

Key Features:

• CPU Support:

  Supports 10th and 11th Generation Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA1200 socket.

• Memory Support:

  2× DDR4 DIMM slots supporting dual-channel memory up to 3200 MHz (with overclocking), 2933/2666/2400 MHz (standard).

  Maximum capacity: 64GB.

• Storage Options:

  • 1× M.2 slot (supports 2242/2280 PCIe Gen3 x4 or SATA SSDs)

  • 4× SATA III 6Gb/s ports for SSDs and HDDs

• Expansion Slots:

  • 1× PCIe 4.0/3.0 x16 slot (for GPU)

  • 1× PCIe 3.0 x1 slot (for expansion cards)

• Networking:

  Integrated 1000Mbps LAN port

• Audio:

  6-channel HD audio with onboard audio chipset

• Rear I/O Ports:

  • 1× PS/2 (keyboard/mouse combo)

  • 1× HDMI

  • 1× VGA

  • 2× USB 3.2 Gen1

  • 4× USB 2.0

  • 1× RJ45 LAN

  • 3× Audio jacks (Line-In, Line-Out, Mic-In)

• Internal Connectors:

  • 1× USB 3.2 Gen1 header (for 2 front panel USB 3.2 ports)

  • 1× USB 2.0 header (for 2 front panel USB 2.0 ports)

• Form Factor:

  Micro-ATX (195 × 225 mm)
