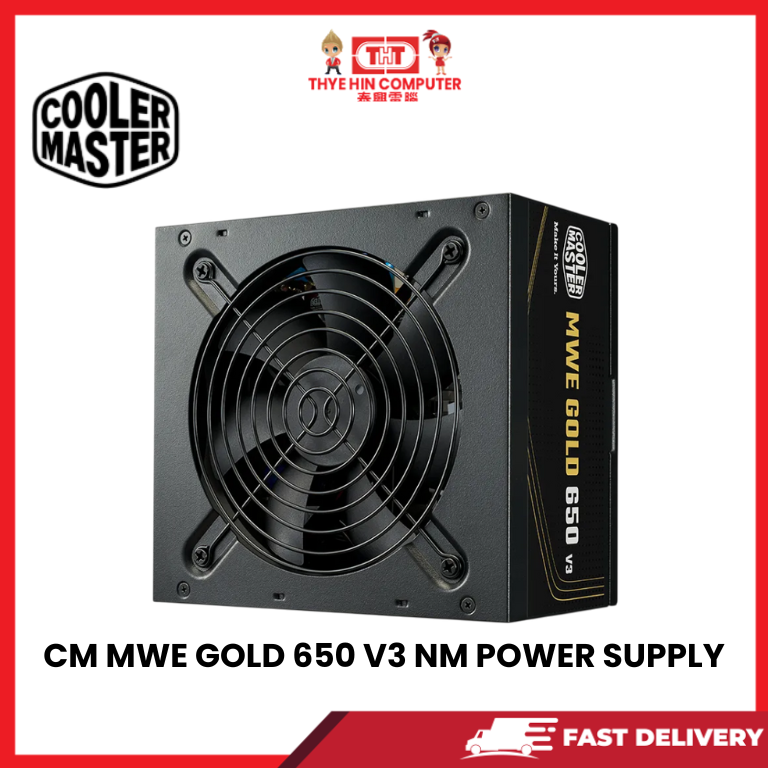

CM MWE GOLD 650 V3 NM POWER SUPPLY [SBN:NO NILAI:YES MELAKA:NO HPS:NO]

ATX Version: ATX 12V Ver. 3.1

PFC: Active PFC

Input Voltage: 100–240V

Input Current:

• 10–6A (850W / 750W)

• 10–5A (650W)

• 8–4A (550W)

Input Frequency: 50–60Hz

Dimensions (L × W × H): 14 × 15 × 8.6 cm

Fan Size: 120mm

Fan Bearing: HDB

Fan Speed:

• 2400 RPM (850W / 750W / 650W)

• 1800 RPM (550W)

Efficiency: ≥ 90% @ Typical Load

80 PLUS Rating: Gold

ErP 2014 Lot 3: Yes

Operating Temperature: 0–40°C

Power Good Signal: 100–150 ms

Hold Up Time: ≥ 16ms at 80% Load

MTBF:

• 100,000 Hours (850W / 750W)

• 100,000 Hours @ 25°C ambient (650W / 550W)

Protections: UVP / OVP / OPP / OTP / SCP / OCP

Regulatory: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS 2.0 / BIS, KC (Region-based)

ATX 24 Pin Connectors: 1

EPS 8 Pin / 4+4 Pin Connectors: 2

PCI-e 6+2 Pin Connectors:

• 4 (850W / 750W / 650W)

• 2 (550W)

SATA Connectors: 6

Peripheral 4 Pin Connectors: 3

12V-2×6 (12+4 Pin) Connectors: 1 (850W / 750W)

Series: MWE Gold Series

Modular: Non-Modular

Form Factor: ATX

80 Plus Efficiency: Gold
