CM MWE 550W 80 PLUS POWER SUPPLY [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

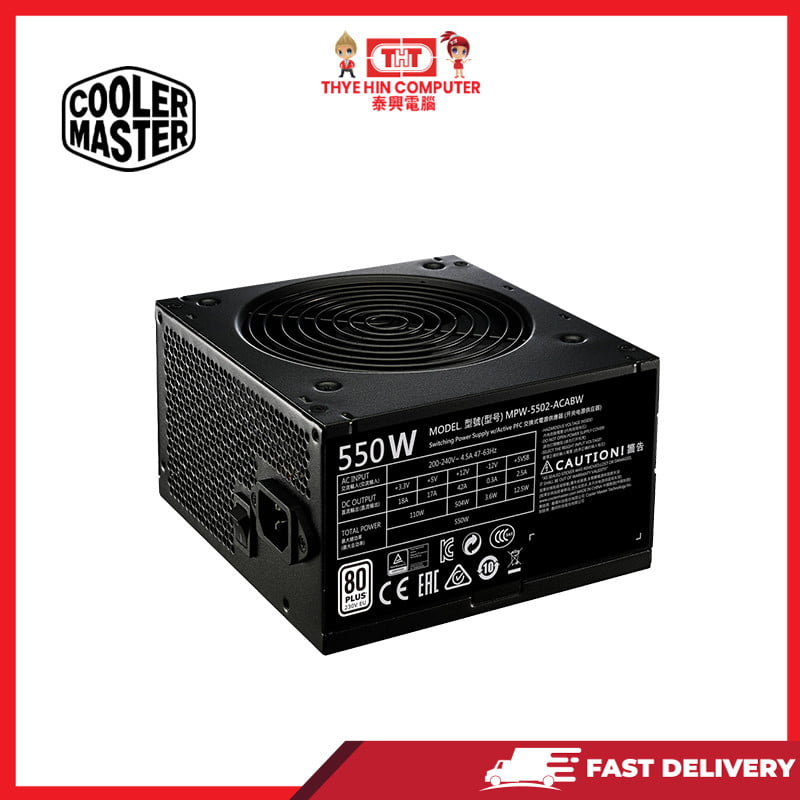

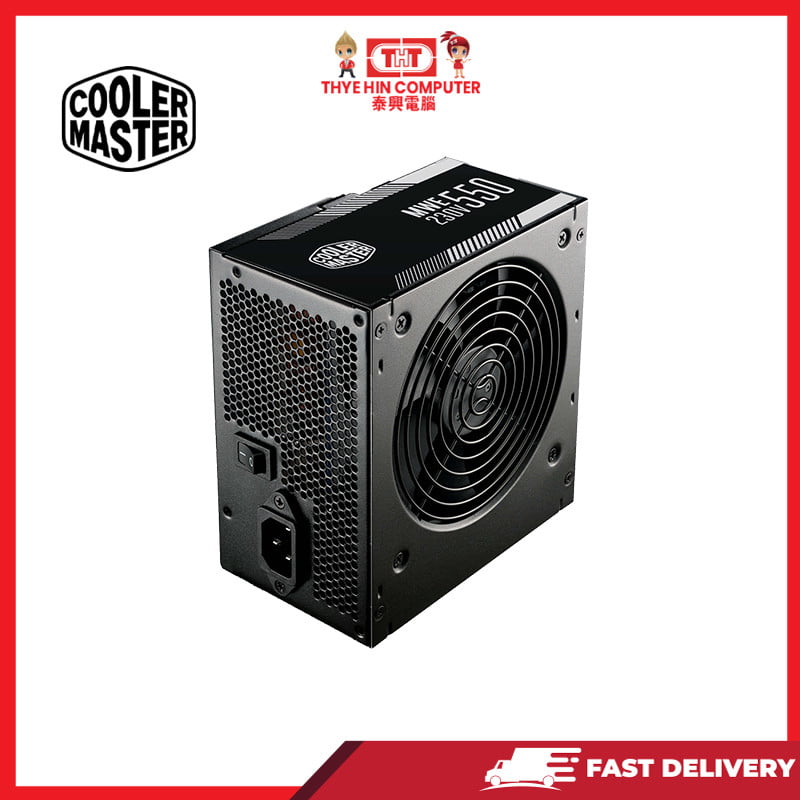

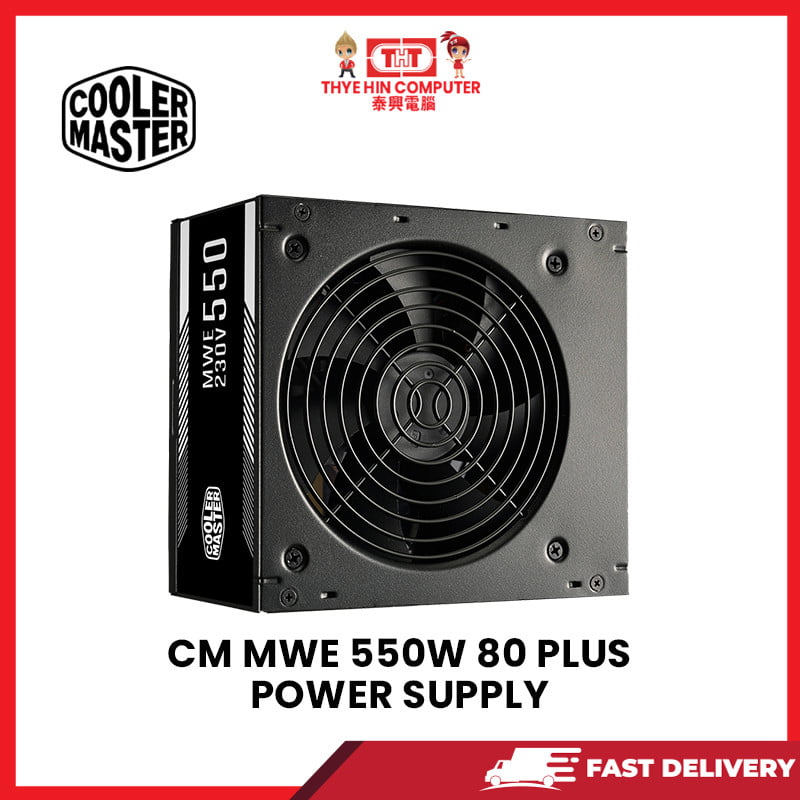

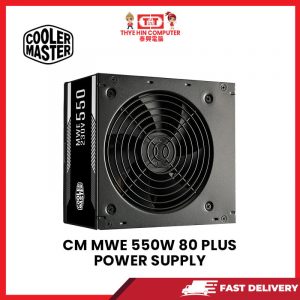

CM MWE 550W 80 PLUS POWER SUPPLY

The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your system at all times. The 120mm fan keeps your system cool with little noise. This tough little box is the perfect solution for all your power needs.

HIGH EFFICIENCY AND LOW NOISE
with Active Power Factor Correction design and forward topology.

ERP 2013 LOT 6 COMPLIANT
The MWE is designed to the latest envirmental regulations and standards, meeting the ErP 2013 mandates. The MWE consumes less then 0.5 Watt when your system is in standby mode, which not only reduces strain on the environment but also your energy bill

PROVEN THERMAL RESISTANCE
The MWE is engineered to operate normally at up to 40°C, providing added security and reliability to systems operating in warmer environments.

QUIET AND DURABLE

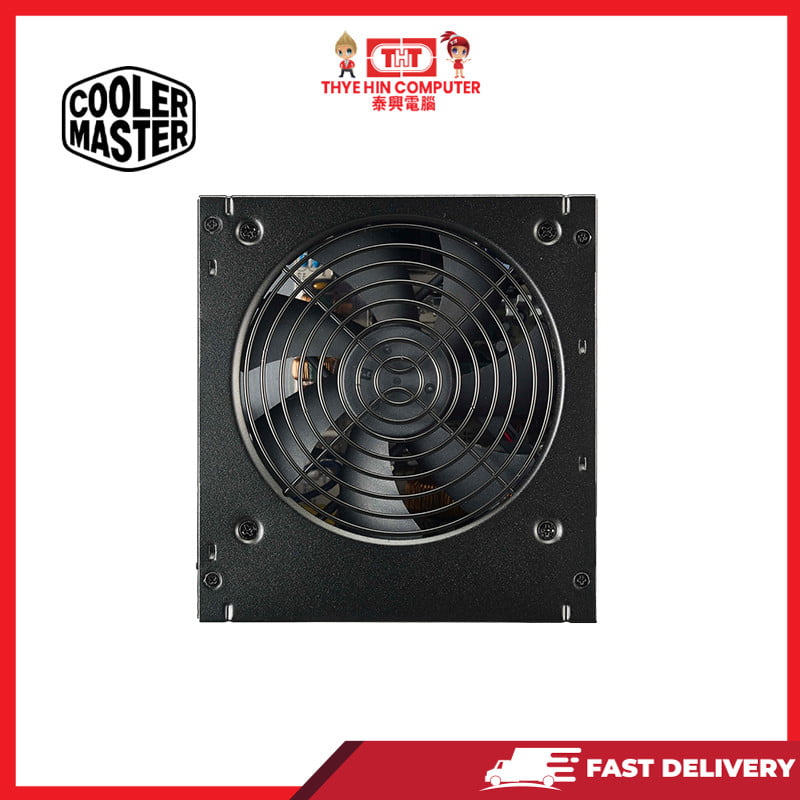

The thermally controlled 120mm HDB fan operates smoothly without friction.
Enjoy your system with a durable fan in a quiet environment.

DAMAGE RESISTANT
The MWE provides you full standard protection (OCP/OVP/UVP/SCP/OPP) plus built-in Over Temperature Protection (OTP). These extra security measures minimize the risk of damage to your system from power outages.

Product Name    MWE 550
Model    MPW-5502-ACABW
ATX Version    Intel Form Factor ATX 12V V2.31
PFC    Active PFC (>0.9 Typical)
Input Voltage    200-240Vac
Input Current    4.5A
Input Frequency    47-63Hz
Dimensions (L x W x H)    140 x 150 x 86 mm
Fan Size    120mm
Fan Bearing    HDB
Fan Speed    840-1980 RPM
Power Good Signal    100 – 500 ms
Hold Up Time    >14ms
Efficiency    85% @ Typical Load
ErP 2013 Lot 6    Yes
MTBF    >100,000 Hours
Operating Temperature    0-40°C
Protections    OVP, OPP, OTP, SCP
Regulatory    CE, TUV, EAC, RCM, CCC
MB 20+4 Pin Connectors    1
CPU 12V 4+4 Pin Connectors    1
SATA Connectors    6
Peripheral 4 Pin Connectors    3
FDD Cable 4 Pin Connectors    1
PCI-e 6+2 Pin Connectors    2
Warranty    3 Years
Modular    Non Modular
Series    MWE White Series
