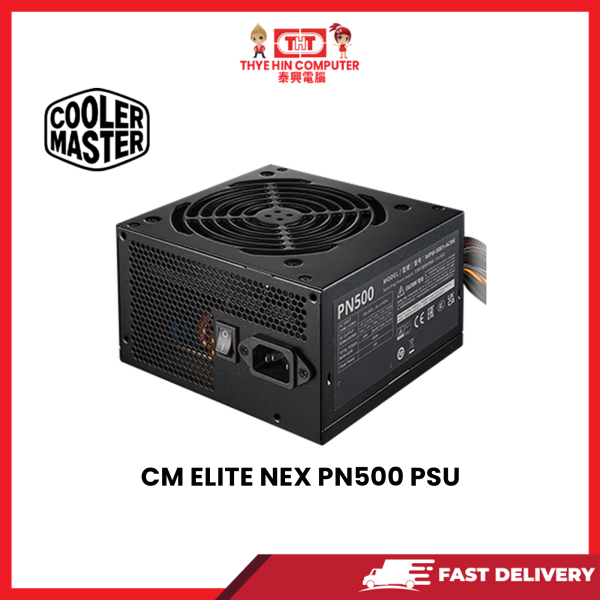

CM ELITE NEX PN500 PSU

Power Supply Specifications

• Form Factor: ATX
• Watts: 500W
• PFC: Active PFC
• Input Frequency: 50-60Hz
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• ATX 24 Pin Connectors: 1
• EPS 4+4 Pin Connectors: 1
• Input Current: 3A
• Power Good Signal: 100 – 500 ms
• MTBF: >100,000 Hours
• Fan Size: 120mm
• Category: 500 to 750W
• Modular: Non Modular
• Fan Bearing: Sleeve Fan
• 80 Plus: None 80 PLUS
• PCI-e 6+2 Pin Connectors: 1
• Peripheral 4 Pin Connectors: 2
• ATX Version: ATX 12V Ver. 2.41
• SATA Connectors: 4
• Dimensions (L x W x H): 140 x 150 x 86 mm
• Input Voltage: 200-240V
• Series: Elite Series
• Hold Up Time: ≥10ms at 100% load
• Efficiency: ≥ 75% @ Typical Load

Protections

• OVP (Over Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• UVP (Under Voltage Protection)
• OTP (Over Temperature Protection)
• Inrush Protection

Regulatory Certifications

• CCC
• CE
• EAC
• TUV
• UKCA

Model

• Model Number: MPW-5001-ACBK-P
