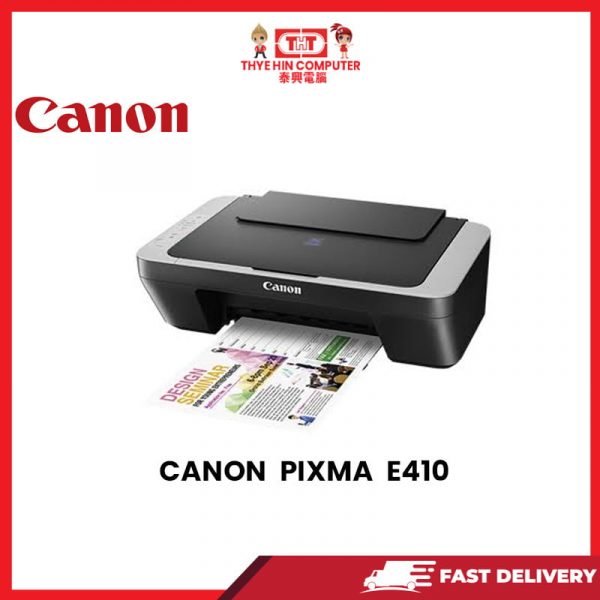

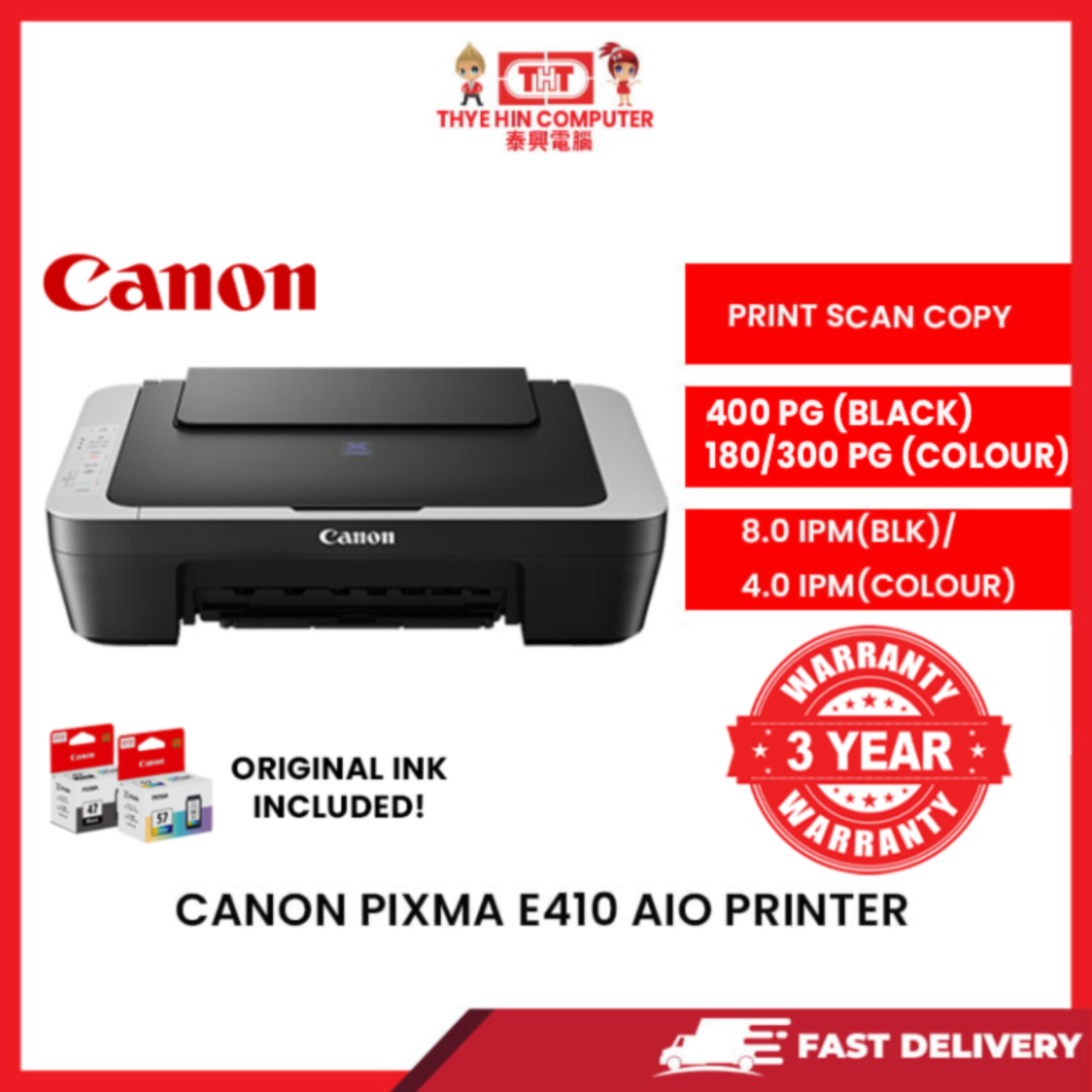

Canon PIXMA E410 All in One Printer [SBN:NO NILAI:YES MELAKA:YES HPS:NO]

Print Head / Ink

Type

Fine Cartridge

Number of Nozzles

Total 1,280 nozzles

Ink Cartridges

PG-47, CL-57S
(Optional: CL-57)

Maximum Printing Resolution

4800 (horizontal)*1 x 1200 (vertical) dpi

Print Speed*2

Based on ISO/IEC 24734
Click here for summary report
Click here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)

Approx. 8.8 ipm (black) / 4.4 ipm (colour)

Printable Width

Up to 203.2 mm (8 inch)

Printable Area

Bordered Printing

Top margin: 3 mm, Bottom margin: 16.7 mm, Left/Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm)

Recommended Printing Area

Top Margin

31.6 mm

Bottom Margin

29.2 mm

Paper Size

A4, A5, B5, Letter, Legal, 4×6", 5×7", Envelopes (DL, COM10), Custom size (width 101.6 – 215.9 mm, length 152.4 – 676 mm)

* F4 is possible via custom size settings.

Paper Handling Rear Tray (Maximum Number)

Plain Paper

A4, A5, B5, Letter = 60
Legal = 10

4×6" = 20, 5×7" = 10

Glossy Photo Paper (GP-508)

4×6" = 20

Envelope

European DL / US Com. #10=5

Paper Weight

Rear Tray

Plain Paper: 64-105 g/m²,
Canon specialty paper: max paper weight: approx. 275 g/m² (Photo Paper Plus Glossy II, PP-201)

Ink End Sensor

Dot count

Print Head Alignment

Manual

Scanner Type

Flatbed

Scanner Method

Optical Resolution*4

Optical resolution scan is available, only when you use TWAIN Driver.

600 x 1200 dpi

Selectable Resolution*5

25 – 19200 dpi

Scanning Bit Depth (Input/Output)

Grayscale

16 bit/8 bit

Colour

48 bit / 24 bit (RGB each 16 bit / 8 bit)

Line Scanning Speed*6

Grayscale

1.2 ms/line (300 dpi)

Colour

3.5 ms/line (300 dpi)

Scanning Speed*7

Reflective (A4 Colour / 300dpi)

Approx. 19 sec

Maximum Document Size

Flatbed

A4/LTR (216 x 297 mm)

Maximum Document Size

Flatbed

A4/LTR (216 x 297 mm)

Compatible Media

Size

A4, Letter

Type

Plain Paper

Image Quality

Plain Paper: Draft, Standard

Copy Speed*8

Based on ISO/IEC 24734
Click here for summary report
Click here for Document Print and Copy Speed
Measurement Conditions

Document (sFCOT/Simplex)

Approx. 30 sec

Document (sESAT/Simplex)

Approx. 1.8 ipm

Multiple Copy

Black/Colour:

1 – 21 pages

Windows 10 / 8 / 7 SP1, Windows Vista SP2

Mac OS X 10.8.5 and later

Interface

Hi-Speed USB 2.0

Operating Environment*10

Temperature

5 – 35°C

Humidity

10 – 90% RH (no dew condensation)

Recommended Environment*11

Temperature

15 – 30°C

Humidity

10 – 80% RH (no dew condensation)

Storage Environment

Temperature

0 – 40°C

Humidity

5 – 95% RH (no dew condensation)

Quiet Mode

Available

Acoustic Noise*12 (PC Print)

46.0 dB(A)

Power

AC 100-240 V, 50/60 Hz

Power Consumption

OFF

Approx. 0.4 W

Standby (Scanning lamp is off)

Approx.1.0 W

Copying*13

Approx. 9 W

Printing*14

Approx. 9 W

Dimension (WxDxH)

Approx. 426 x 306 x 145 mm

Weight

Approx. 3.4 kg

Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*15

Standard: PG-47: 400
CL-57S: 180
 Optional: CL-57: 300
