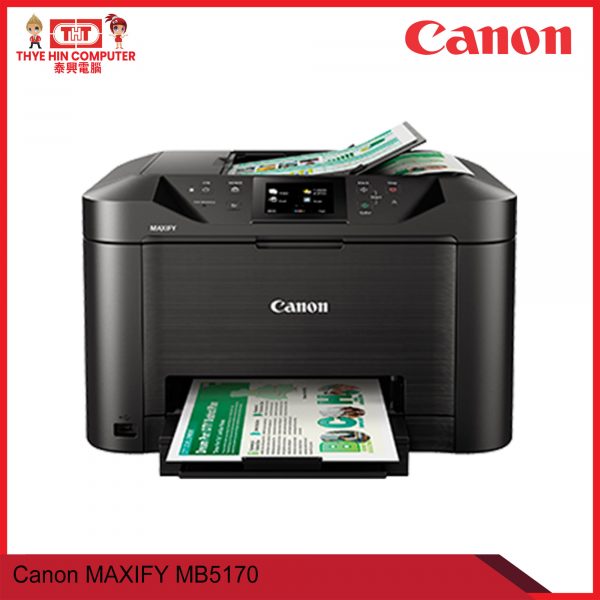

CANON MB5170 PSCF WIFI AIO PRINTER ) [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM1199.00
Out of stock
| Maximum Printing Resolution | 600 (horizontal) x 1200 (vertical) dpi | |
| Print Head / Ink | Type: | Individual Ink Cartridges |
| Number of Nozzles: | Total 4,352 nozzles | |
| Ink Cartridge: | PGI-2700 (Cyan, Magenta, Yellow, Black) Optional: PGI-2700XL (Cyan, Magenta, Yellow, Black) |
|
| Print Speed *1 Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions |
Document: Colour: ESAT / Simplex |
Approx. 15.5 ipm |
| Document: Colour: |
Max. 26.5 ppm*2 |
|
| Document: B / W: ESAT / Simplex |
Approx. 24.0 ipm | |
| Document: B / W: |
Max. 32.5 ppm*2 |
|
| Document: Colour: ESAT / Duplex |
Approx. 9.5 ipm | |
| Document: B / W: ESAT / Duplex |
Approx. 13.0 ipm | |
| Document: Colour: FPOT Ready / Simplex |
Approx. 7 sec | |
| Document: B / W: FPOT Ready / Simplex |
Approx. 6 sec | |
| Document: Colour: FPOT Sleep / Simplex |
Approx. 12 sec | |
| Document: B / W: FPOT Sleep / Simplex |
Approx. 10 sec | |
| Printable Width | Up to 203.2 mm (8") | |
| Printable Area | Bordered Printing: | Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Bordered Auto Duplex Printing: | Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) | |
| Recommended Printing Area | Top Margin: | 45.8 mm |
| Bottom Margin: | 36.8 mm | |
| Paper Size |
A4, A5, B5, Letter, Legal, Oficio, B-Oficio*, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10, C5, Monarch) *Not supported for Mac. |
|
| Paper Handling (Cassette1: Upper) (Maximum Number) |
Plain Paper | A4, A5, B5, Letter, Legal = 250 |
| Photo Paper Pro Luster (LU-101) | A4 = 10 | |
| Matte Photo Paper (MP-101) | 4 x 6" = 20, A4 = 10 | |
| Photo Paper Plus Glossy II (PP-201) | 4 x 6" = 20, A4 = 10 | |
| Glossy Photo Paper "Everyday Use" (GP-508) | 4 x 6" = 20, A4 = 10 | |
| High Resolution Paper (HR-101N) | A4 = 65 | |
| Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6" = 20, A4, 8 x 10" = 10 | |
| Envelope | Envelopes (DL, COM10, C5, Monarch) = 10 | |
| Paper Output | Approx. 75 pages (A4, LTR, LGL) | |
| Support Media for Auto 2-sided Printing |
Type: | Plain Paper |
| Size: | A4, Letter | |
| Paper Weight | Cassette1 (Upper): | Plain Paper: 64-105 g/m2, Canon specialty paper: max paper weight: approx. 275 g/m2 (Photo Paper Plus Glossy II PP-201) |
| Ink End Sensor | Electrical pulse detect + Dot count | |
| Print Head Alignment | Auto / Manual | |
| Scan *3 | ||
| Scanner Type | Flatbed & ADF | |
| Scanning Method | CIS (Contact Image Sensor) × 2 (2-sided) | |
| Duplex Scanning | Available (Single pass 2-sided scan) | |
| Optical Resolution *4 | 1200 x 1200 dpi | |
| Selectable Resolution *5 | 25 – 19200 dpi | |
| Scanning Bit Depth (Input / Output) | Grayscale: | 16 bit / 8 bit |
| Colour: | 48 bit / 24 bit (RGB each 16 bit / 8 bit) | |
| Scanning Speed *6 *14 | Document (ADF): Colour scESAT30secA / Simplex |
Approx. 16.0 ipm |
| Document (ADF): B / W scESAT30secA / Simplex |
Approx. 19.0 ipm | |
| Document (ADF): Colour scESAT30secA / Duplex |
Approx. 23.0 ipm | |
| Document (ADF): B / W scESAT30secA / Duplex |
Approx. 23.0 ipm | |
| Document (ADF): Colour scEFTP30secF / Simplex |
Approx. 15.0 ipm | |
| Document (ADF): B / W scEFTP30secF / Simplex |
Approx. 17.5 ipm | |
| Document (ADF): Colour scEFTP30secF / Duplex |
Approx. 21.0 ipm | |
| Document (ADF): B / W scEFTP30secF / Duplex |
Approx. 21.5 ipm | |
| Maximum Document Size | Flatbed | A4, Letter (216 x 297 mm) |
| ADF | A4 / Letter / Legal | |
| Copy | ||
| Maximum Document Size | A4, Letter (216 x 297 mm) ADF: A4 / Letter / Legal |
|
| Compatible Media | Size: | A6, A4, A5, B5, Letter, Legal, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7" |
| Type: | Plain Paper Photo Paper Plus Glossy II (PP-201) Photo Paper Plus semi-Gloss (SG-201) Glossy Photo Paper "Everyday Use" (GP-508) Matte Photo Paper (MP-101) Photo Paper Pro Luster (LU-101) |
|
| Image Quality | 2 positions (Standard, High) | |
| Density Adjustment | 9 positions, Auto intensity (AE copy) | |
| Copy Speed *9 Based on ISO / IEC 29183. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions |
Document: Colour: sFCOT / Simplex |
Approx. 11 sec |
| Document (ADF): Colour: ESAT / Simplex |
Approx. 11.5 ipm | |
| Document (ADF): B / W ESAT / Simplex |
Approx. 22.0 ipm | |
| Document (ADF): Colour ESAT / Duplex |
Approx. 6.0 ipm | |
| Document (ADF): B / W ESAT / Duplex |
Approx. 10.0 ipm | |
| Multiple Copy | Black / Colour: | Max. 99 pages |
| Fax | ||
| Type | Desktop Transceiver (Super G3 / Color Communication) | |
| Applicable Line | PSTN (Public Switched Telephone Network) | |
| Transmission Speed *8 | Black: | Approx. 3sec (33.6 kbps) |
| Colour: | Approx. 1min (33.6 kbps) | |
| Fax Resolution | Black: | 8 pels/mm x 3.85 lines/mm (Standard) 8 pels/mm x 7.7 lines/mm (Fine) 300 x 300 dpi (Extra Fine) |
| Colour: | 200 x 200 dpi | |
| Print Size | A4, Letter, Legal | |
| Scanning Width | 208 mm (A4), 214 mm (Letter) | |
| Modem Speed | Maximum 33.6 kbps (Automatic fall back) | |
| Compression | Black: | MH, MR, MMR |
| Colour: | JPEG | |
| Gradation | Black: | 256 levels |
| Colour: | 24 bit Full color (RGB each 8 bit) | |
| ECM (Error Correction Mode) | ITU-T T.30 compatible | |
| Automatic Dialing | Coded Speed Dialing | Max. 100 locations |
| Group Dialing | Max. 99 locations | |
| Transmission / Reception Memory *9 | Approx. 250 pages | |
| PC Fax | ||
| PC FAX | Windows | Available |
| Mac | Available | |
| Destination Number | 1 location | |
| Black / Colour | B / W transmission only | |
| Network | ||
| Protocol | SNMP (Standard MIB), TCP / IP | |
| Wired LAN | Network Type: | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Data Rate: | 10 M / 100 Mbps (auto switchable) | |
| Wireless | Network Type: | IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Frequency Band: | 2.4 GHz | |
| Channel: | 1 – 13 | |
| Range: | indoor 50 m (depends on the transmission speed and conditions) | |
| Security: | WEP64 / 128 bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) | |
| Direct connection (Wireless LAN) | Available | |
| Printing Solutions | ||
| Apple AirPrint | Available | |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", A5, B5, Legal, A6, Oficio, M-Oficio, Foolscap Legal (India), Executive, Envelopes (DL, COM10, C5, Monarch)
Custom size [cassette (upper)]: width 89 – 216.0 mm, length 127 – 355.6 mm, [cassette (lower)]: width 210 – 216 mm, length 279.4 – 355.6 mm) |
| Print Quality*12 | Standard / High | |
| Microsoft Mobile Print | Available | |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", A5, B5, Legal, Envelopes (DL, COM10) |
| Print Quality*13 | Standard / High | |
| Mopria | Available | |
| Google Cloud Print | Available | |
| Canon Print Service Plugin (for Android OS) |
Available | |
| PIXMA / MAXIFY Cloud Link | from smartphone or tablet: | Available |
| from printer: | Available | |
| Canon PRINT Inkjet / SELPHY (for iOS / for Android) Canon Easy-PhotoPrint (for Windows RT) |
Available | |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", A5, B5, Legal, A6, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive |
| Print Quality | Fixed | |
| System Requirements (Please visit www.canon-asia.com to check OS compatibility and to download the latest driver updates.) |
Windows: |
Windows 10, Windows 8, Windows 7 SP1, Windows Vista SP2 |
| Macintosh: | Mac OS X 10.8.5 and later | |
| Others: | Chrome OS | |
| General Specifications | ||
| Operation Panel | Display: | LCD (3.5 inch / 8.8 cm TFT Color/ Touch) |
| Language: | 33 Languages Selectable: Japanese / English (mm & inch) / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovak / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Croatian / Thai / Vietnamese | |
| ADF | Paper Handling (Plain Paper 17 lb. Bond) | A4 / Letter = 50, Legal = 10, Others = 1 |
| Auto 2-sided | Available (Single pass 2-sided scan) | |
| Interface | USB A Port | USB flash memory |
| USB B Port |
USB 2.0 High Speed |
|
| USB Flash Memory | File Format *15 | JPEG and TIFF (Exif-compliant) taken by DCF (Ver.1.0 / 2.0) compliant digital cameras. (Exif ver2.2 / 2.21 / 2.3 compliant) |
| Operating Environment *12 | Temperature: 5 – 35°C Humidity: 10 – 90% RH (no dew condensation) |
|
| Recommended Environment *13 | Temperature: 15 – 30°C Humidity: 10 – 80% RH (no dew condensation) |
|
| Storage Environment | Temperature: 0 – 40°C Humidity: 5 – 95% RH (no dew condensation) |
|
| Quiet mode | Available | |
| Acoustic Noise (PC Print) | Document (A4, B / W, Default)*10 | Approx. 56 dB(A) |
| Power | AC 100 – 240 V, 50/60Hz | |
| Power Consumption | Standby (scanning lamp is off) USB connection to PC |
Approx. 0.9 W |
| OFF | Approx. 0.2 W | |
| Copying*11 (USB connection to PC): | Approx. 25 W | |
| Environment | Regulation: | RoHS (EU, China), WEEE (EU) |
| Duty Cycle | up to 30,000 pages/month | |
| Dimension (W x D x H) | Factory configuration | Approx. 463 x 394 x 291 mm |
| Paper installed (A4 / LTR) | Approx. 463 x 459 x 291 mm | |
| Output / ADF trays extended | Approx. 463 x 607 x 329 mm | |
| Weight | Approx. 11.4 kg | |
| Weight | 1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
