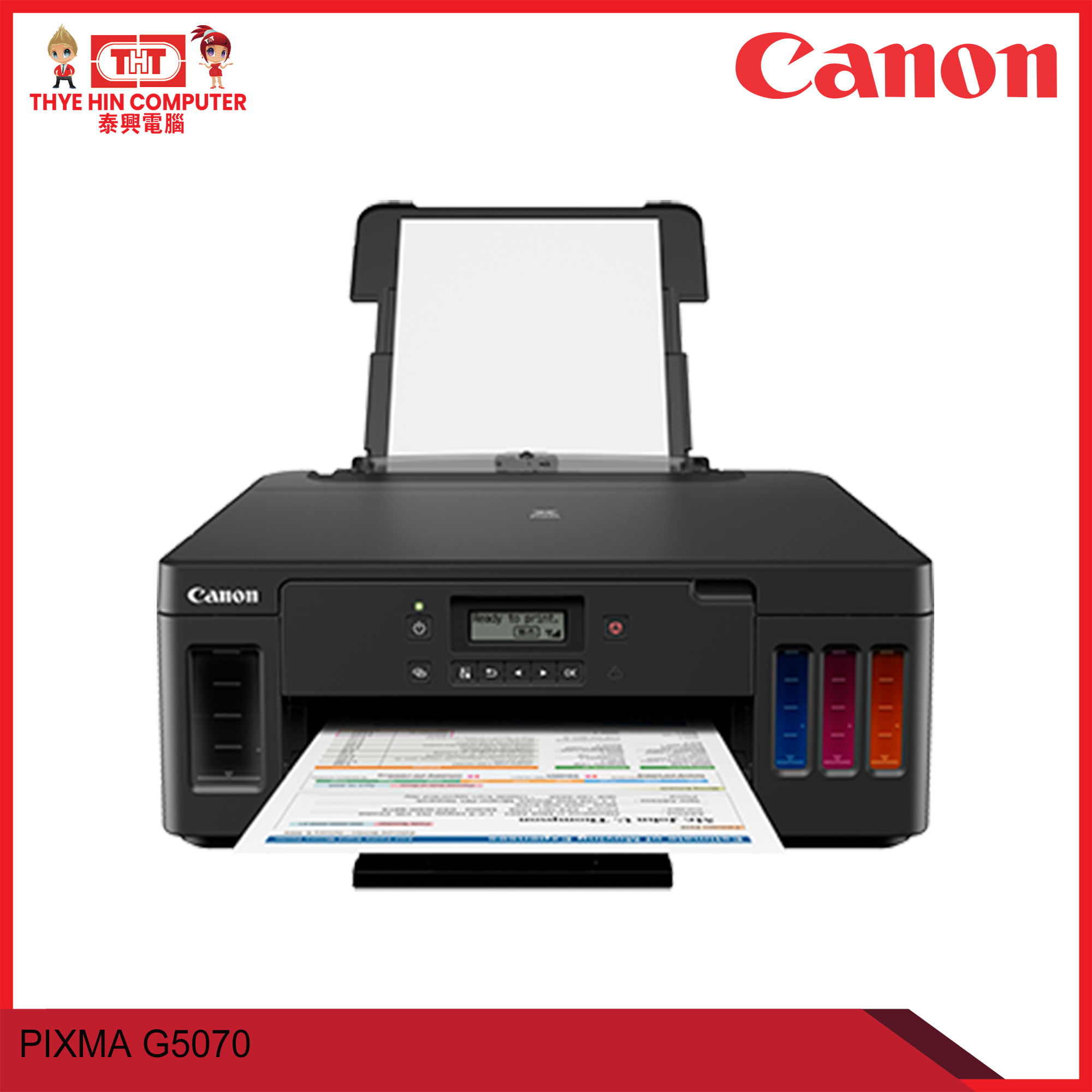

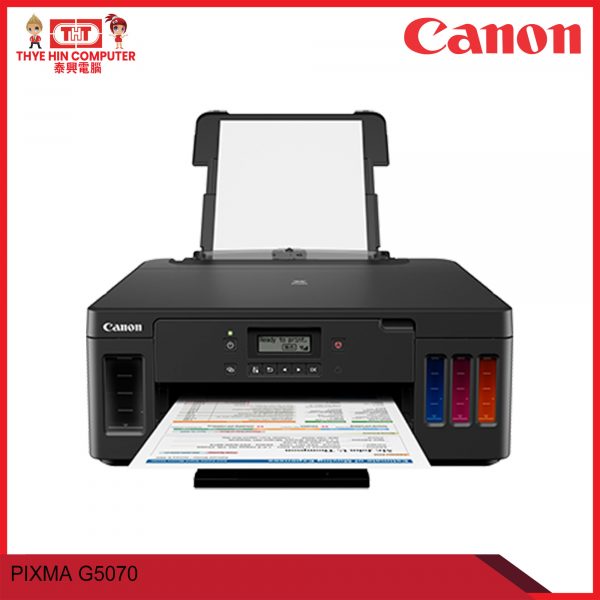

CANON G5070 PRINTER [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Print Head / Ink

Type

Permanent (Replaceable)

Number of Nozzles

Total 1,792 nozzles

Ink Bottles

GI-70 (Pigment Black / Cyan / Magenta / Yellow)

Maximum Printing Resolution

4800 (horizontal)*1 x 1200 (vertical) dpi

Print Speed*2

Based on ISO/IEC 24734
Click here for Summary Report
Click here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)

Approx. 13.0 ipm (black) / 6.8 ipm (colour)

Document (ESAT/Duplex)

Approx. 2.9 ipm (black) / 2.8 ipm (colour)

Document (FPOT Ready/Simplex)

Approx. 9 sec (black) / 14 sec (colour)

Photo (4 x 6") (PP-201/Borderless)

Approx. 45 sec

Printable Width

Up to 203.2 mm (8")

Borderless: Up to 216 mm (8.5")

Printable Area

Borderless Printing*3

Top/Bottom/Right/Left margin: each 0 mm

Bordered Printing

#10 Envelope/DL Envelope:
Top margin: 8 mm, Bottom margin: 12.7 mm, Left/Right margin: 5.6 mm

127 x 127 mm:
Top/Bottom/Left/Right margin: 6 mm

89 x 89 mm / 4 x 4":
Top/Bottom/Left/Right margin: 5 mm

LTR / LGL:
Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4 mm, Right margin: 6.3 mm

Other:
Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm

Bordered Auto 2-Sided Printing

Top/Bottom margin: 5 mm
Left/Right margin: 3.4 mm

(LTR: Left: 6.4 mm, Right: 6.3 mm)

Support Media

Rear Tray

Plain Paper (64 – 105 g/m²)
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Glossy II (PP-201/PP-208)
Matte Photo Paper (MP-101)
Glossy Photo Paper "Everyday Use" (GP-508)
High Resolution Paper (HR-101N)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Stickers (PS-108/PS-208/PS-808)
Removable Photo Stickers (PS-308R)
Magnetic Photo Paper (PS-508)
Envelope

Cassette

Plain Paper (64 – 105 g/m²)

Paper Size

Rear Tray

A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 7 x 10", 8 x 10",
Envelopes (DL, COM10), Square (5 x 5", 4 x 4", 89 x 89 mm), Card Size (91 x 55 mm)

[Custom size] width 55 – 215.9 mm, length 89 – 676 mm
* F4 is possible via custom size settings.

Cassette

A4, A5, B5, LTR

[Custom size] width 148 – 215.9 mm, length 210 – 297 mm
* F4 is possible via custom size settings.

Paper Size (Borderless)*4

A4, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10",
Square (5 x 5", 4 x 4", 89 x 89 mm), Card Size (91 x 55 mm)

Paper Handling (Maximum Number)

Rear Tray

Plain Paper (A4, 64 g/m²) = 100
High Resolution Paper (HR-101N) = 80
Photo Paper: 4 x 6" = 20

Cassette

Plain Paper (A4, 64 g/m²) = 250

Support Media for Auto 2-sided printing

Type

Plain Paper

Size

A4, A5, B5, LTR

Paper Weight

Rear Tray

Plain Paper: 64 – 105 g/m²
Canon paper: Max paper weight: Approx. 300 g/m²
(Photo Paper Pro Platinum PT-101)

Cassette

Plain Paper: 64 – 105 g/m²

Ink End Sensor

Electrode type and dot count type combined

Print Head Alignment

Auto/Manual

Protocol

TCP/IP, SNMP

Wired LAN

Network Type

IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)

Data Rate

10 M/100 Mbps (Auto switchable)

Wireless

Network Type

IEEE802.11b/g/n

Frequency Band

2.4 GHz

Channel*5

1 – 13

Range

Indoor 50 m (Depends on the transmission speed and conditions)

Security

WEP 64/128 bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Direct Connection (Wireless LAN)

Available

AirPrint

Available

Windows 10 Mobile

Available

Mopria

Available

Canon Print Service
for Android

Available

PIXMA Cloud Link
(from smartphone/tablet)

Available

Easy Photo-Print Editor
(for iOS/for Android)

Available

Canon PRINT Inkjet/SELPHY
(for iOS/for Android)

Available

Windows 10 / 8.1 / 7 SP1
(Operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

OS X 10.10.5 ~ 10.11,
macOS 10.12 ~ 10.14

Chrome OS

Operation Panel

Display

2-Line LCD

Language

32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese

Interface

Hi-Speed USB 2.0

PictBridge (Wireless/Wired LAN)

Available

Operating Environment*7

Temperature

5 – 35°C

Humidity

10 – 90% RH (no dew condensation)

Recommended Environment*8

Temperature

15 – 30°C

Humidity

10 – 80% RH (no dew condensation)

Storage Environment

Temperature

0 – 40°C

Humidity

5 – 95% RH (no dew condensation)

Quiet Mode

Available

Acoustic Noise (PC Print)

Plain Paper (A4, B/W)*9

Approx. 50.5 dB(A)

Power

AC 100 – 240 V, 50/60 Hz

Power Consumption

OFF

Approx. 0.3 W

Standby (scanning lamp is off)
USB connection to PC

Approx. 0.8 W

Standby (all ports connected, scanning lamp is off)
[EU only – for ErP Lot 26 regulation]

Approx. 1.6 W

Time to enter Standby mode
[EU only – for ErP Lot 26 regulation]

Approx. 11 min 10 sec

Printing*10
USB connection to PC

Approx. 21 W

Environment

Regulation

RoHS (EU, China), WEEE (EU)

Duty Cycle

Up to 5,000 pages/month

Dimension (WxDxH)

Factory Configuration

Approx. 403 x 369 x 166 mm

Output/ADF trays extended

Approx. 403 x 695 x 356 mm

Weight

Approx. 6.5 kg

Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*11

Standard:
GI-70 PGBK: 6,000
GI-70 C/M/Y: 7,700

Economy*12:
GI-70 PGBK: 8,300
GI-70 C/M/Y: 7,700

Photo Paper (PP-201, 4 x 6")
(ISO/IEC 29103 test file)*11

Standard:
GI-70 PGBK: NA
GI-70 C/M/Y: 2,200
