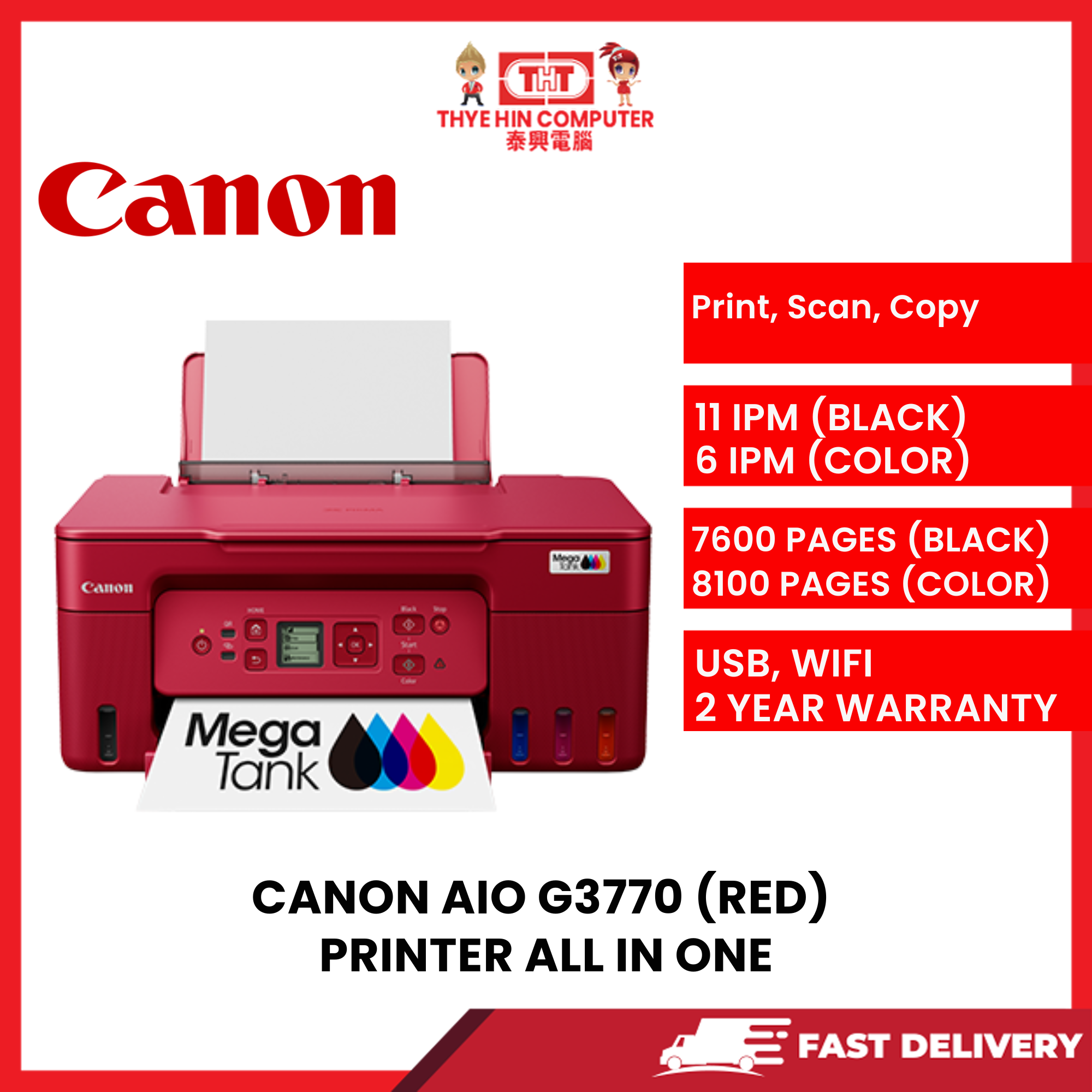

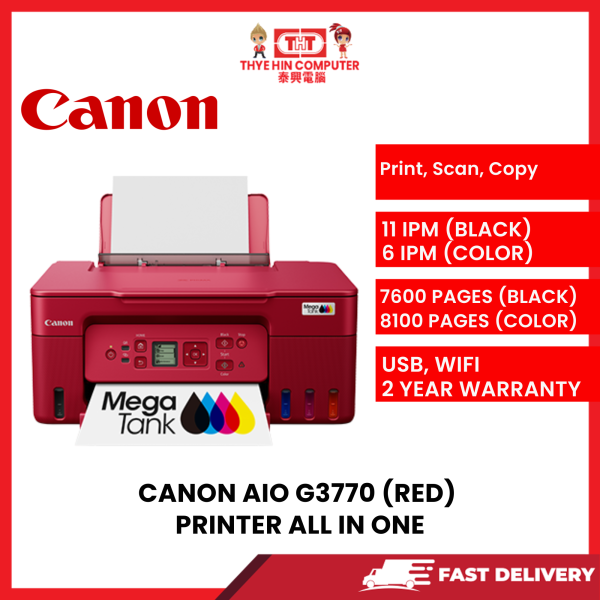

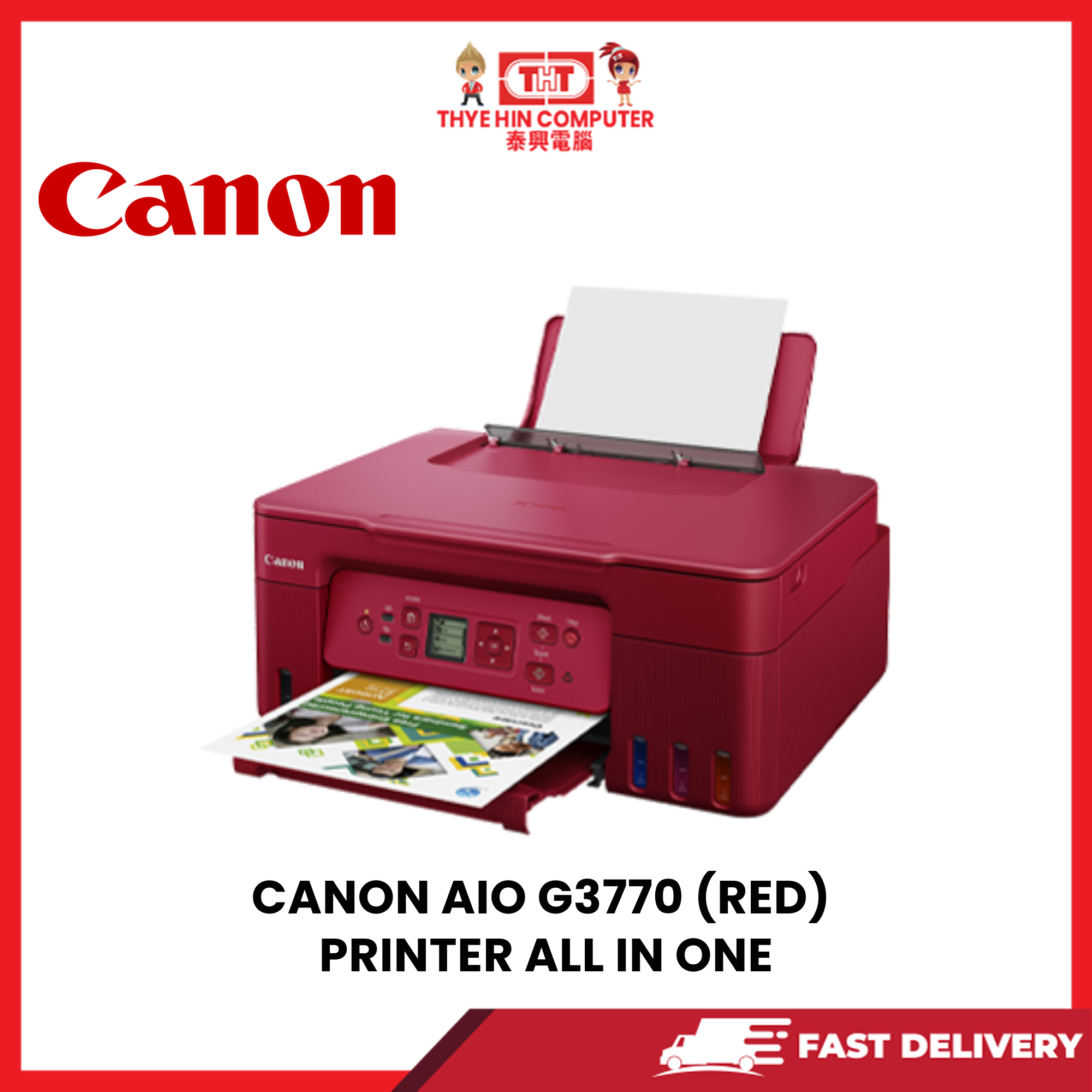

CANON AIO G3770 (RED) PRINTER ALL IN ONE WIRELESS PRINT SCAN COPY [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

CANON AIO G3770 (RED) PRINTER ALL IN ONE  WIRELESS PRINT SCAN COPY

Print

• Print head / ink:

  • Number of nozzles: total 1,792 nozzles

  • Ink bottles (type/colours): GI-71 (bundled), GI-71S

    • Pigment ink / black

    • Dye-based ink / cyan, magenta, yellow

  • Maintenance cartridge: MC-G04

• Maximum printing resolution: 4,800 (horizontal) x 1,200 (vertical) dpi

• Print speed (approx.):

  • Document (ESAT/Simplex): 11 / 6 ipm (mono/colour)

  • Document (FPOT Ready/Simplex): 9 / 14 sec (mono/colour)

  • Photo (4 x 6", PP-201, borderless): 45 sec

• Printable width:

  • Up to 203.2 mm (8")

  • Borderless: up to 216 mm (8.5")

• Print margin:

  • Borderless printing: top/bottom/left/right margin: 0 mm

  • Bordered printing:

    • Envelope (COM10 / DL): top/bottom margin: 12.7 mm, left/right margin: 3.4 mm

    • Envelope (C5 / Monarch): top/bottom margin: 12.7 mm, left/right margin: 5.6 mm

    • B-Oficio, M-Oficio: top margin: 3 mm, bottom margin: 5 mm, left/right margin: 6.4 mm

    • LTR, LGL, Foolscap, F4, Oficio2: top margin: 3 mm, bottom margin: 5 mm, left margin: 6.3 mm, right margin: 6.4 mm

    • Legal (India): top margin: 3 mm, bottom margin: 5 mm, left/right margin: 5.9 mm

    • Square 5 x 5" (127 x 127 mm): all margins: 6 mm

    • Square 3.5 x 3.5" (89 x 89 mm): all margins: 5 mm

    • Custom size: width 55 – 216 mm, length 89 – 1,200 mm

      • Top margin: 3 mm

      • Bottom margin: 5 mm

      • Left margin: 3.4 mm

      • Right margin: 3.4 – 9.4 mm

    • Others: top margin: 3 mm, bottom margin: 5 mm, left/right margin: 3.4 mm

Support Media

• Rear tray supported media types:

  • Plain paper (64 – 105 g/m²)

  • High resolution paper (HR-101N)

  • Photo paper plus glossy II (PP-201, PP-208)

  • Photo paper plus semi-gloss (SG-201)

  • Photo paper pro luster (LU-101)

  • Matte photo paper (MP-101)

  • Double-sided matte photo paper (MP-101D)

  • Envelope

  • Photo stickers (PS-208, PS-808)

• Paper size (rear tray):

  • A4, A5, A6, B5, LTR, LGL, Executive, Oficio2, B-Oficio, M-Oficio, Legal (India), Foolscap, F4

  • 4 x 6", 5 x 7", 7 x 10", 8 x 10"

  • Envelopes (DL, COM10, C5, Monarch)

  • Square (89 x 89 mm, 127 x 127 mm)

  • Card size (91 x 55 mm)

  • Custom size: width 55 – 216 mm, length 89 – 1,200 mm

• Paper size (borderless):

  • A4, B5, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10"

  • Square (89 x 89 mm, 127 x 127 mm)

  • Card size (91 x 55 mm)

• Paper handling (maximum number):

  • Plain paper, A4/LTR (64 g/m²): 100

  • High resolution paper (HR-101N): 80

  • Photo paper (4 x 6"):

    • Photo paper plus glossy II (PP-201, PP-208): 20

    • Photo paper plus semi-gloss (SG-201): 20

    • Matte photo paper (MP-101): 20

• Paper weight (rear tray):

  • Plain paper: 64 – 105 g/m²

  • Canon paper: max. 265 g/m² (photo paper plus glossy, PP-201)

• Ink end sensor: dot count type

• Print head alignment: manual

Scan

• Scanner type: flatbed

• Scanner method: contact image sensor (CIS)

• Optical resolution: 600 x 1,200 dpi

• Scanning bit depth (input/output):

  • Greyscale: 16 bit / 8 bit

  • Colour (RGB each): 16 bit / 8 bit

• Line scanning speed (approx.):

  • Greyscale: 1.5 ms/line (300 dpi)

  • Colour: 3.5 ms/line (300 dpi)

• Maximum document size (flatbed): A4, LTR (216 x 297 mm)

Copy

• Compatible media:

  • Size: A4, A5, A6, B5, LTR, Executive (184.2 × 266.7 mm), 4 x 6", 5 x 7", Square (127 x 127 mm), Card size (91 x 55 mm)

  • Type:

    • Plain paper (64 – 105 g/m²)

    • Photo paper plus glossy II (PP-201, PP-208)

    • Photo paper pro luster (LU-101)

    • Photo paper plus semi-gloss (SG-201)

    • Matte photo paper (MP-101)

• Image quality: 3 positions (economy, standard, high)

• Density adjustment: 9 positions, auto intensity (AE copy)

• Copy speed (approx.): document (colour) (sFCOT/Simplex)/(sESAT/Simplex): 23 sec / 3.2 ipm

• Multiple copy: mono/colour max. 99 pages

• Maximum document size: A4, LTR

Network

• Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6)

• Wireless LAN:

  • Network type: IEEE 802.11b/g/n, 2.4 GHz

    • Supported channels: 1 – 13 (TW: 1 – 11 only)

  • Security:

    • WPA-PSK (TKIP/AES)

    • WPA2-PSK (TKIP/AES)

    • WPA3-SAE (AES)

  • Direct connection (wireless LAN): available

Printing Solutions

• AirPrint: available

• Mopria Print Service: available

• Canon Print Service (Android): available

• Cloud Integration Service (smartphone/tablet): available

• Canon PRINT (iOS / Android): available

• Camera direct via wireless LAN: available

System Requirements

• Windows: 11 / 10 / 8.1 / 7 SP1 (operation guaranteed only on PC with pre-installed Windows 7 or later)

• macOS: 10.14.6 – 12 or later

• ChromeOS: supported

General Specifications

• Operation panel:

  • Display: 1.35" / 3.4 cm square LCD (monochrome)

  • Language: 32 selectable (includes English, Japanese, Chinese, French, German, and others)

• Interface: USB 2.0

• Operating environment:

  • Temperature: 5 – 35°C

  • Humidity: 10 – 90% RH (no dew condensation)

• Recommended environment:

  • Temperature: 15 – 30°C

  • Humidity: 10 – 80% RH (no dew condensation)

• Storage environment:

  • Temperature: 0 – 40°C

  • Humidity: 5 – 95% RH (no dew condensation)

• Quiet mode: available

• Acoustic noise (PC print approx.):

  • Plain paper (A4, mono): 48.5 dB(A)

• Power:

  • AC 100 – 240 V, 50/60 Hz

  • Power consumption (approx.):

    • Off: 0.1 W

    • Standby (USB connection, scanning lamp off): 0.6 W

    • Copying (USB connection): 16 W

• Duty cycle: up to 3,000 pages/month

• Dimensions (WxDxH, approx.):

  • Factory configuration: 416 x 337 x 177 mm

  • Output/trays extended: 416 x 557 x 268 mm

• Weight (approx.): 6 kg

Page Yield

• Plain paper (A4 colour documents):

  • GI-71 PGBK: 6,000 pages (economy mode: 7,600)

  • GI-71 C, M, Y: 7,700 pages (economy mode: 8,100)

  • GI-71S PGBK: 3,100 pages (economy mode: 3,900)

  • GI-71S C, M, Y: 4,400 pages (economy mode: 4,600)

• Photo paper (4 x 6", PP-201):

  • GI-71 C, M, Y: 2,200

  • GI-71S C, M, Y: 1,200

  • GI-71 and GI-71S PGBK: not applicable for photo paper
