ASUS PRIME H610M-A WIFI D4 LGA1700 INTEL SOCKET MOTHERBOARD [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM569.00
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync
- Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
- Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Out of stock
ASUS PRIME H610M-A WIFI D4 LGA1700 INTEL SOCKET MOTHERBOARD
Model
PRIME H610M-A WIFI D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 1Gb Ethernet
Wireless & Bluetooth
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

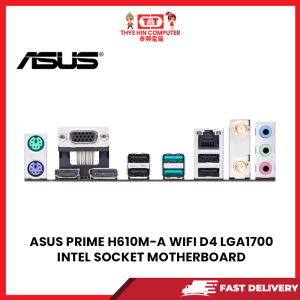

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
AURA Sync
– AURA RGB headers
– Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
| Weight | 1.00 kg |
|---|---|
| Dimensions | 24.40 × 21.10 × 1.00 cm |
