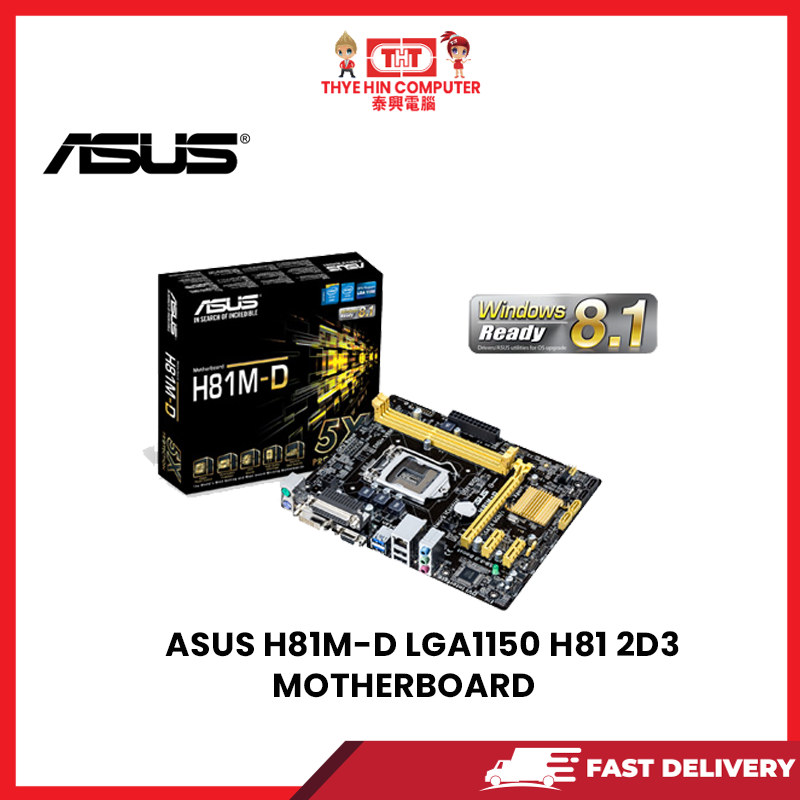

ASUS H81M-D LGA1150 H81 2D3 MOTHERBOARD

TECH SPECS

• CPU

  Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® H81

• Memory

  2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

• Graphic

  Integrated Graphics Processor
  Multi-VGA output support : DVI/RGB ports
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• Expansion Slots

  1 x PCIe x16
  2 x PCIe 2.0 x1

• Storage

  Intel® H81 chipset :
  2 x SATA 6Gb/s port(s), yellow
  2 x SATA 3Gb/s port(s), dark brown
  Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *¹

• LAN

  Realtek® 8111G, 1 x Gigabit LAN Controller(s)

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC *²
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

• USB Ports

  Intel® H81 chipset :
  2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
  Intel® H81 chipset :
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

• Special Features

  ASUS 5X Protection :
  – ASUS DIGI+ VRM – 3 Phase digital power design
  – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
  – ASUS ESD Guards – Enhanced ESD protection
  – ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
  – ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – GPU Boost
  – AI Suite 3
  – Ai Charger
  – Anti-Surge
  – Low EMI Solution
  – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  – Network iControl
  – USB 3.0 Boost
  – Disk Unlocker
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution
  – ASUS Fan Xpert
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 2
  ASUS Q-Design :
  – ASUS Q-Slot

• Operating System Support

  Windows® 8.1
  Windows® 8
  Windows® 7

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue)
  2 x USB 2.0
  1 x Parallel port(s)
  3 x Audio jack(s)

• Internal I/O Ports

  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  2 x SATA 6Gb/s connector(s)
  2 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x Clear CMOS jumper(s)

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)

• BIOS

  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

• Manageability

  WfM 2.0, DMI 2.0, WOL by PME, PXE

• Support Disc

  Drivers
  ASUS Utilities
  EZ Update
  Anti-Virus Software (OEM Version)

• Form Factor

  uATX Form Factor
  8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
