ASROCK B760M PRO-A/D4 WIFI [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

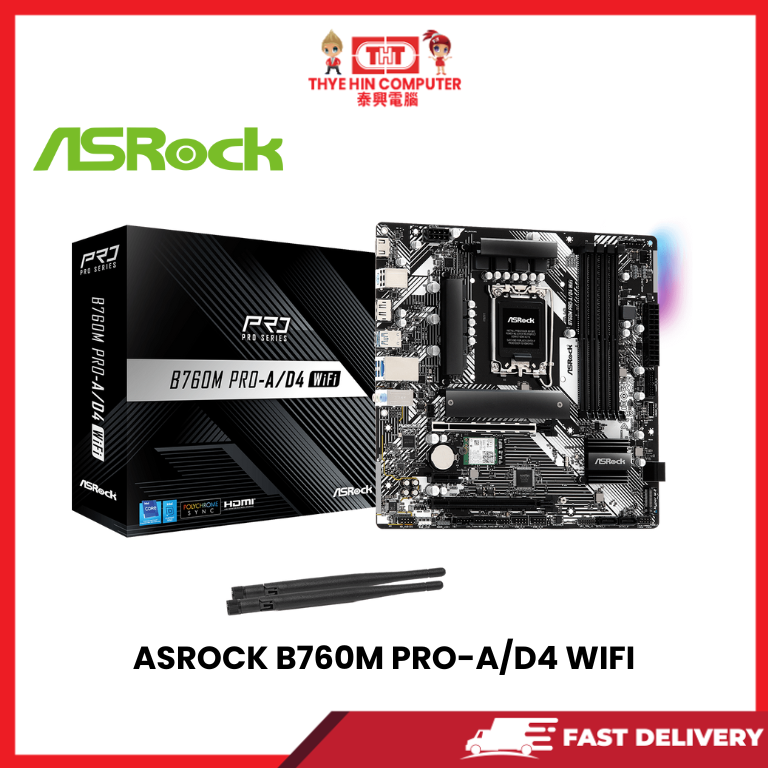

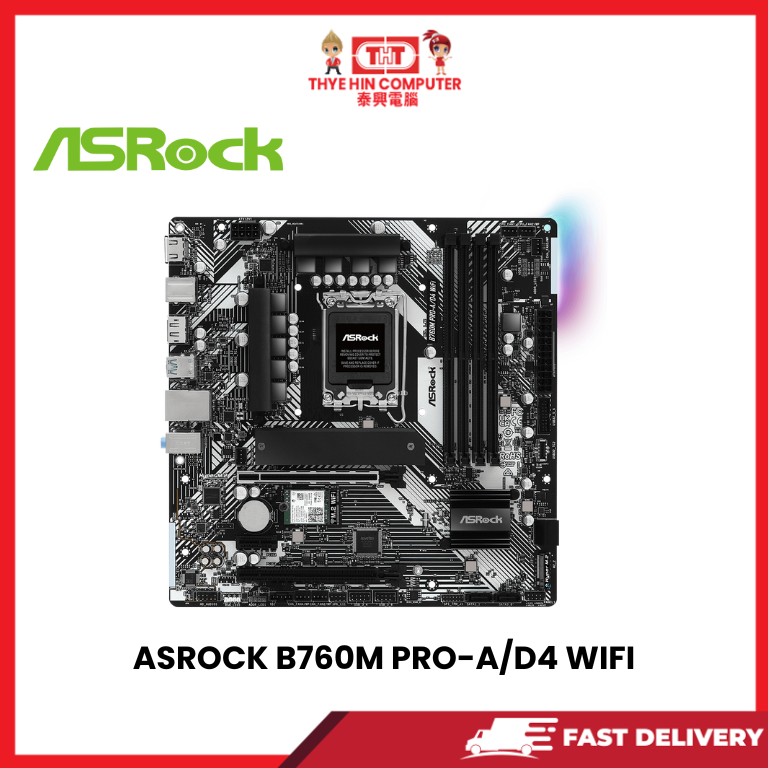

ASROCK B760M PRO-A/D4 WIFI

Summary

Rock-Solid Durability
– 7+1+1 Power Phase, Dr.MOS for VCore+GT
– ASRock Intel® 4-Layer Memory POOL Technology

Ultrafast Connectivity
– 2.5G LAN, Killer Wi-Fi 6E (802.11axe)

EZ Features
– Auto Driver Installer
– Post Status Checker

CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ (LGA1700)
– Intel® Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT

Chipset
– Intel® B760

Memory
– Dual Channel DDR4, 4 DIMM slots, up to 128GB
– Supports DDR4 up to 5333+(OC), Intel® XMP 2.0

BIOS
– 128Mb AMI UEFI with GUI

Graphics
– Intel® Xe Architecture (Gen 12)
– HDMI 2.1 (4K 60Hz)
– DisplayPort 1.4 (8K 60Hz / 5K 120Hz)

Audio
– 7.1 CH HD (Realtek ALC897)

LAN
– 2.5G LAN (Dragon RTL8125BG), bandwidth control

Wireless LAN
– Wi-Fi 6E, Dual-band 2×2, Bluetooth 5.3
– MU-MIMO, Killer LAN Software

Slots
– PCIe 4.0 x16 (CPU & Chipset)
– 1 x PCIe 4.0 x1, 1 x M.2 (Wi-Fi module)
– Supports AMD CrossFire™

Storage
– 2 x Hyper M.2 (PCIe Gen4x4)
– 4 x SATA3 6.0 Gb/s
– Supports RAID 0, 1, 5, 10

USB Ports
– 2 x USB 3.2 Gen1 Type-C
– 5 x USB 3.2 Gen1 Type-A
– 6 x USB 2.0

Connectors
– TPM header, RGB/LED headers, fan connectors, power connectors
– Thunderbolt™ AIC connector

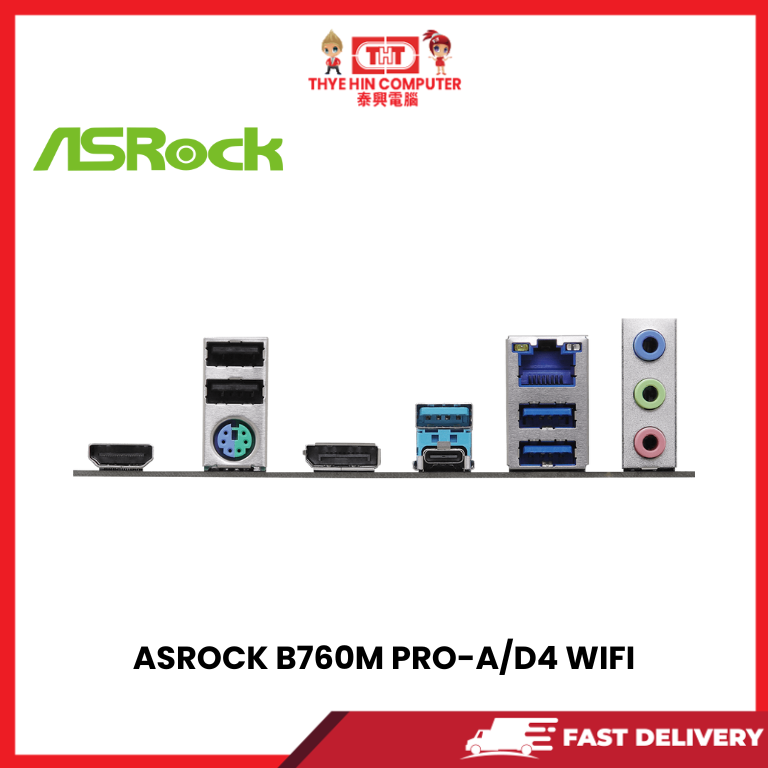

Rear I/O
– 2 antenna ports, HDMI, DisplayPort
– USB 3.2 Gen1, USB 2.0, RJ-45 LAN, audio jacks

Software and UEFI
– ASRock A-Tuning, Polychrome SYNC, EZ Mode UEFI

Accessories
– Manual, I/O shield, SATA cables, Wi-Fi antennas, M.2 screws

Form Factor
– Micro ATX (24.4 cm x 24.4 cm)

OS Compatibility
– Windows® 10 / 11 64-bit

Certifications
– FCC, CE, ErP/EuP ready
