Specifications
-

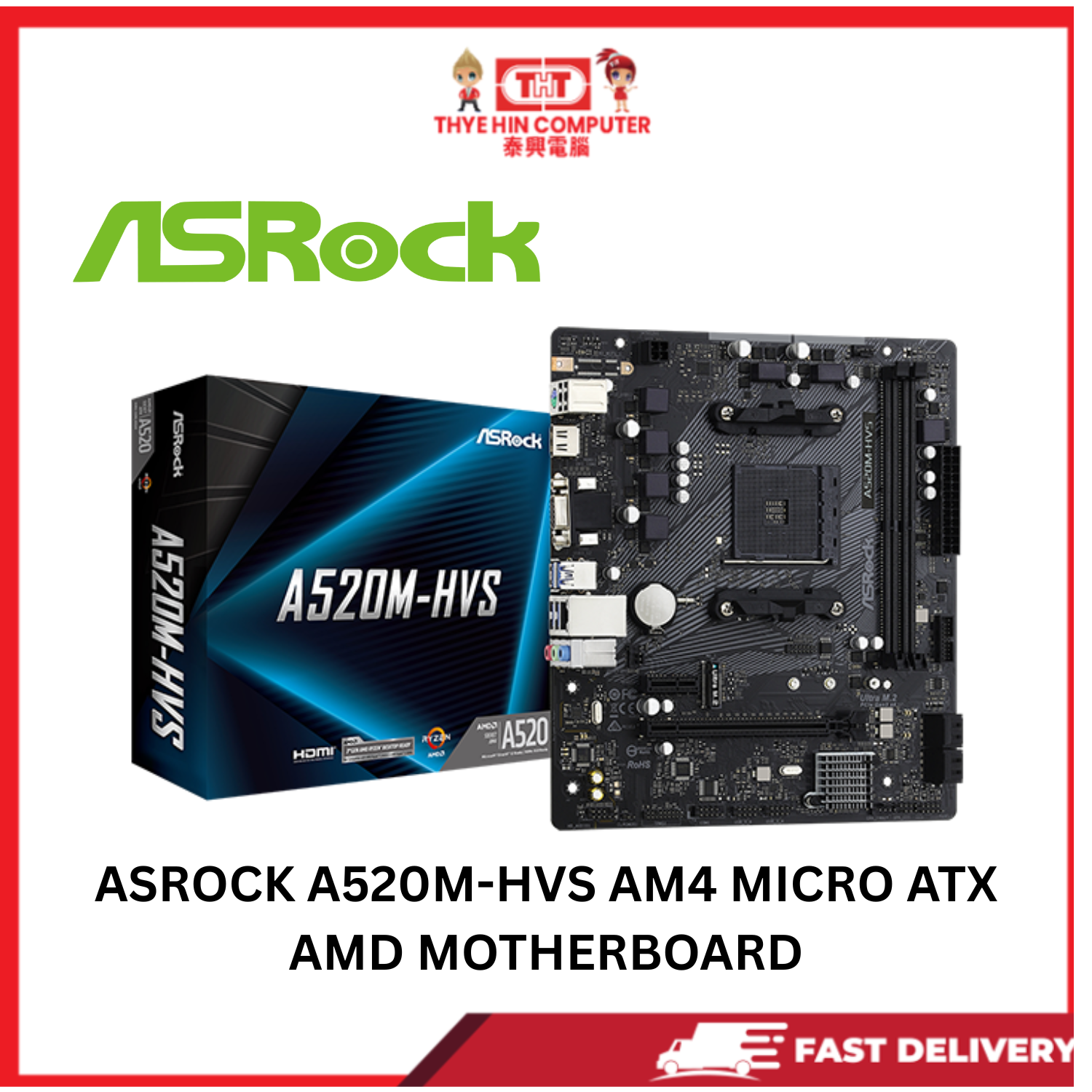

Model: ASRock A520M-HVS
-
Form Factor: Micro ATX
-
CPU Socket: AM4
-
Chipset: AMD A520
-
Supported Processors:
-
AMD Ryzen™ 5000 Series
-
AMD Ryzen™ 4000 G-Series
-
AMD Ryzen™ 3000 G-Series
-
AMD Ryzen™ 3000 Series (Matisse)
-
-
Memory:
-
2 x DDR4 DIMM slots
-
Supports up to 64GB
-
Speeds up to 4733+ MHz (OC)
-
-
Expansion Slots:
-
1 x PCIe 3.0 x16
-
1 x PCIe 3.0 x1
-
-
Storage:
-
1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
-
4 x SATA3 6Gb/s ports
-
-
Graphics Output:
-
1 x VGA (D-Sub)
-
1 x HDMI
-
-
Audio:
-
Realtek ALC887 7.1 Channel HD Audio
-
-
LAN:
-
Realtek RTL8111H Gigabit Ethernet
-
-
USB Ports:
-
6 x USB 3.2 Gen1 (4 Rear, 2 Front)
-
6 x USB 2.0 (2 Rear, 4 Front)
-
-
Internal Headers:
-
1 x USB 3.2 Gen1 header
-
2 x USB 2.0 headers
-
1 x TPM header
-
1 x COM port header
-
1 x Speaker header
-
1 x CPU fan connector (4-pin)
-
2 x Chassis fan connectors (4-pin)
-
-
Dimensions: 24.4 cm x 20.5 cm
-
Warranty: 1 Year
⭐ Key Features
-
Broad Ryzen Support
Compatible with AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors for a wide range of performance options. -
High-Speed DDR4 Memory
Supports overclocked memory speeds up to 4733+ MHz for faster multitasking and gaming. -
Multiple Display Outputs
Features HDMI and VGA outputs for flexible dual-monitor configurations. -
Ultra M.2 and SATA Storage
Equipped with high-speed M.2 and multiple SATA ports for storage expandability. -
7.1 HD Audio
Realtek audio chipset provides immersive sound quality for entertainment and gaming. -
Gigabit LAN
Stable and fast network performance, ideal for downloads, streaming, and online games. -
USB 3.2 Connectivity
Provides faster data transfer with multiple USB 3.2 Gen1 ports.
