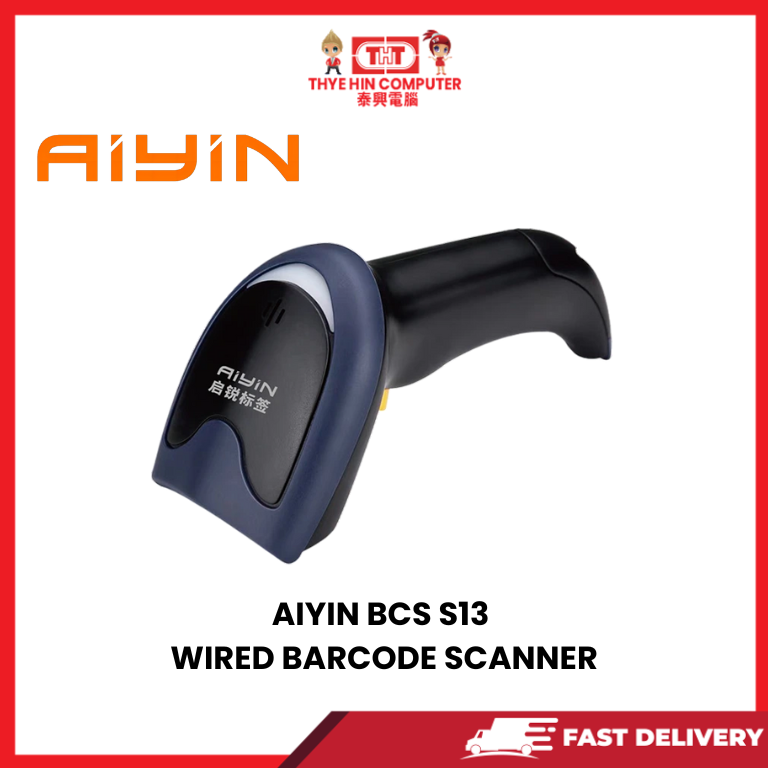

AIYIN BCS S13 WIRED BARCODE SCANNER
S13 Specifications
Supported Barcodes
-
1D Barcodes:
-
Code 128, EAN-8, EAN-13, UPC-E, UPC-A
-
Code 39, Code 32, Trioptic 39, Codabar
-
Code 93, ITF 25, Matrix 25, Industrial 25, Airline 25
-
Plessey, MSI, Code 11
-
GS1-Databar, Composite
-
-
2D Barcodes:
-
QR Code, PDF417, Data Matrix
-
169, Aztec, Maxicode, Dot Code
-
Sensor
-
Resolution: 640 × 480
-
10mil QR depth of field: 20mm – 100mm
Illumination
-
360nm – 830nm white LED
Aiming Light
-
360nm – 830nm white LED
Code Reading Accuracy
-
Greater than 4mil
Reading Deflection
-
Curl: 0° – 360°
-
Slope: ±60°
-
Angle distortion (deviation): ±60°
Scanning Speed
-
Average 30 scans per second or more
Interface Options
-
USB HID-KBW
-
RS232 (optional)
-
VCOM (optional)
Depth of Field
-
13mil EAN-13: 35mm – 270mm
Dimensions
-
173mm (L) × 68mm (W) × 76mm (H)
